1功能简介
1 Function Introduction

1.1功能概述
1.1 Function Overview

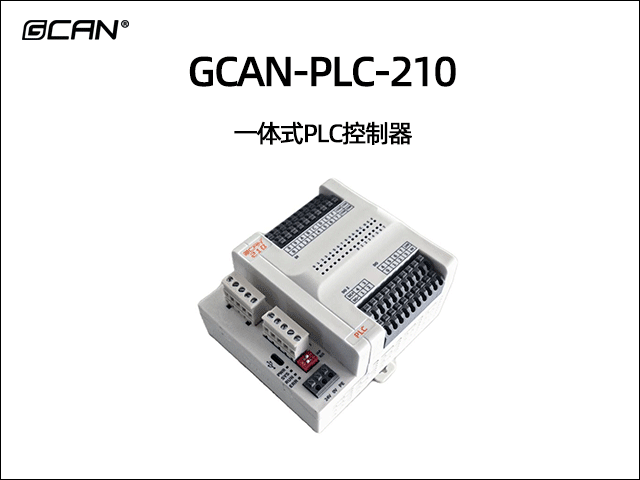

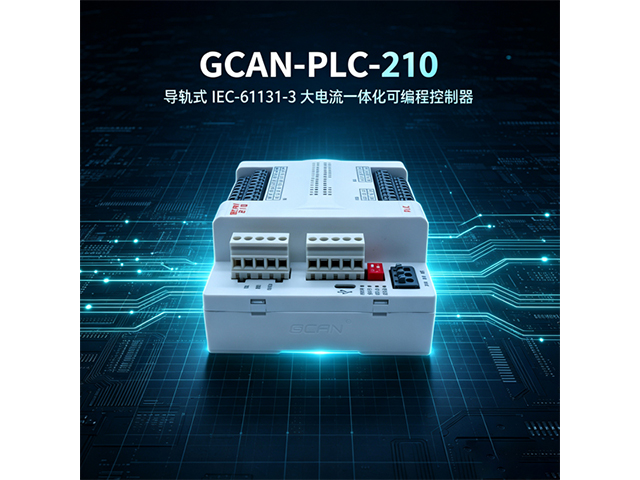

GCAN-PLC-210是一款集成有总线控制功能的可编程逻辑控制器（PLC）。其不仅具有外观简约、高性价比的特点，还可以方便的连接入Modbus系统等。
GCAN-PLC-210 is a programmable logic controller (PLC) with integrated bus control function. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to Modbus systems, etc.

GCAN-PLC-210产品将微处理器、集成电源、输入电路和输出电路组合到一个结构紧凑的外壳中，形成功能强大的PLC。下载用户程序后，PLC将包含监控应用中的输入和输出设备所需的逻辑。
The GCAN-PLC-210 product combines a microprocessor, integrated power supply, input circuit, and output circuit into a compact housing, forming a powerful PLC. After downloading the user program, the PLC will contain the logic required for the input and output devices in the monitoring application.

GCAN-PLC-210可使用OpenPCS软件对其编程，也可使用CodeSys V3.5 SP16及以上版本软件对其编程。软件支持符合IEC-61131-3标准中规定的五种标准编程语言，这使得程序的可移植性和复用性很强，而且软件还具有多种调试功能（断点、单步等），调试程序更加方便。
GCAN-PLC-210 can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.

GCAN-PLC-210不仅可完成数字的输入/输出，还集成了多种常用的工业现场总线，如：RS232/485总线，并支持常见的通信协议如：ModbusRTU等。
GCAN-PLC-210 not only completes digital input/output, but also integrates various commonly used industrial fieldbus, such as RS232/485 bus, and supports common communication protocols such as Modbus RTU.

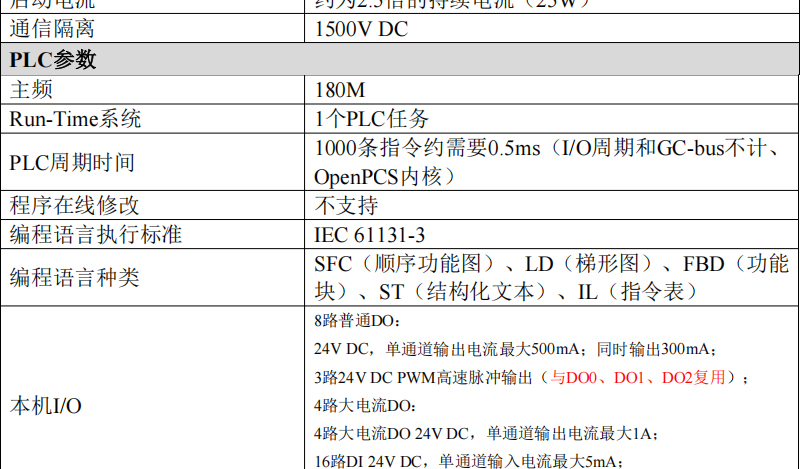

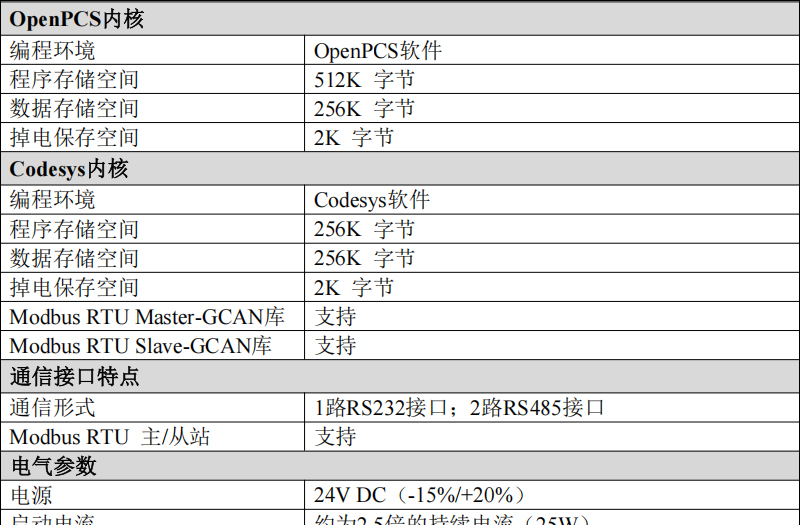

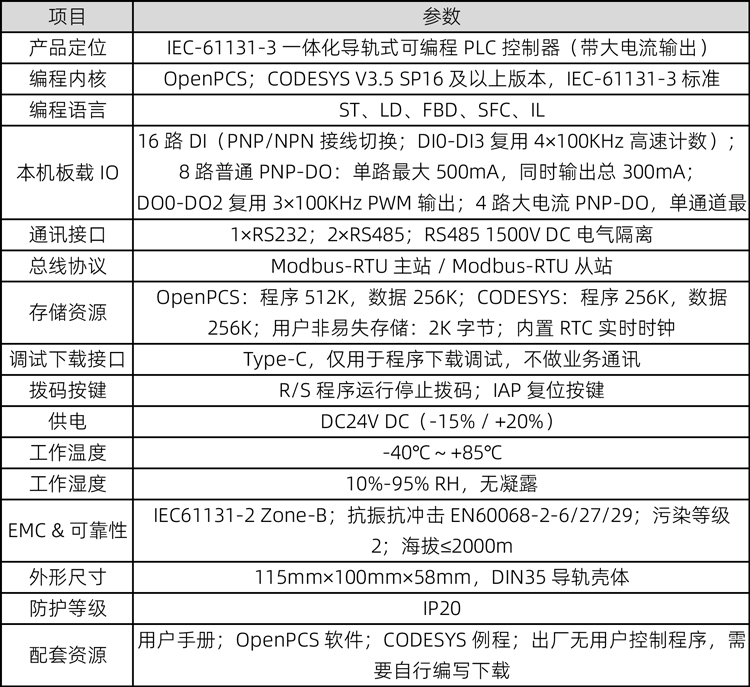

1.2性能特点
1.2 Performance Characteristics

●编程软件：OpenPCS/CodeSys（编程语言符合IEC61131-3标准）；
●Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);

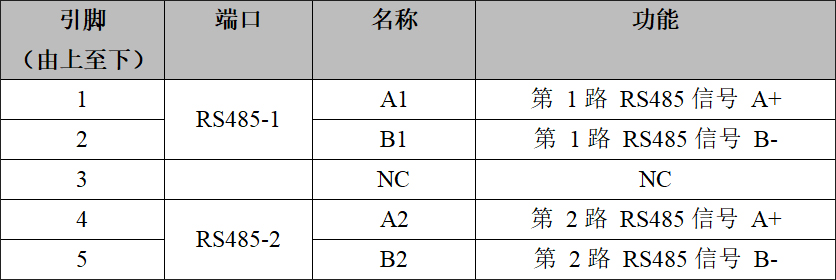

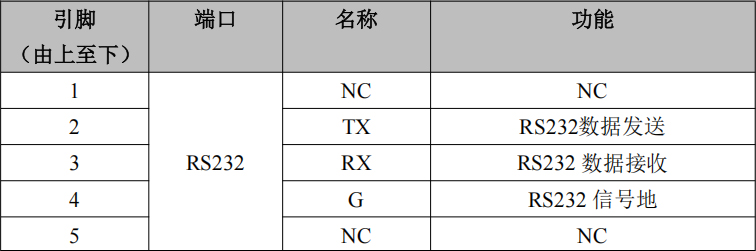

●1路RS232通道；2路RS485通道；
● 1 RS232 channel; 2 RS485 channels;

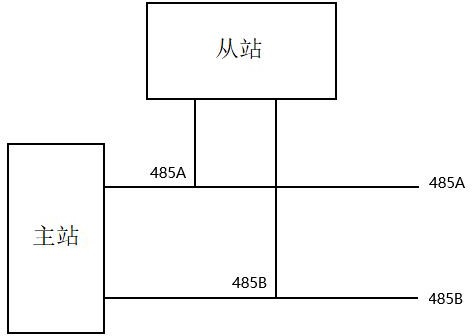

●支持Modbus RTU主/从站功能；
● Supports Modbus RTU master/slave functionality;

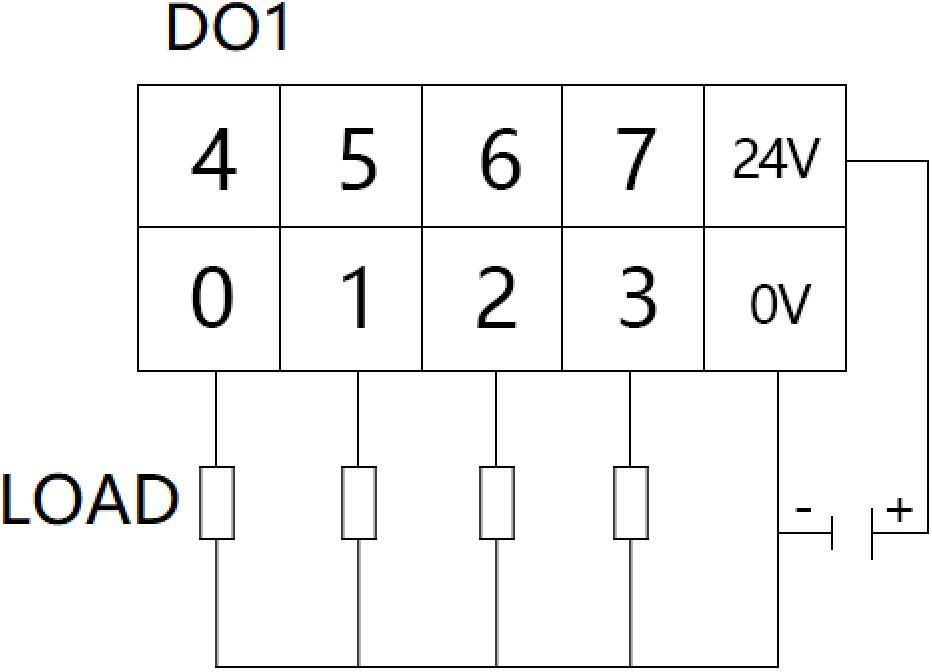

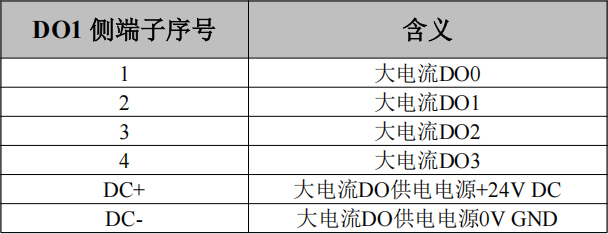

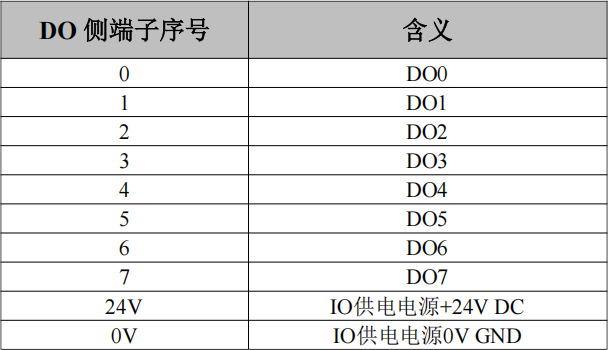

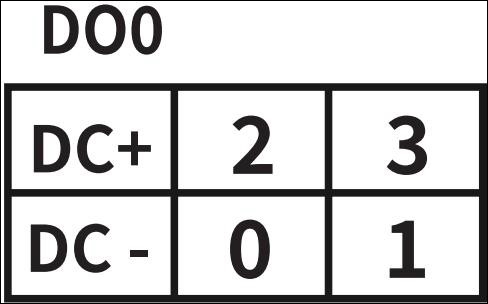

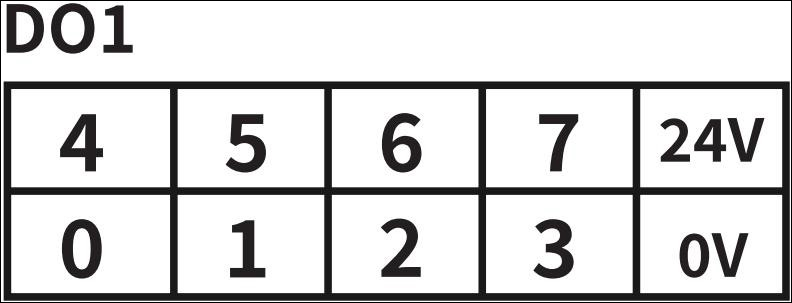

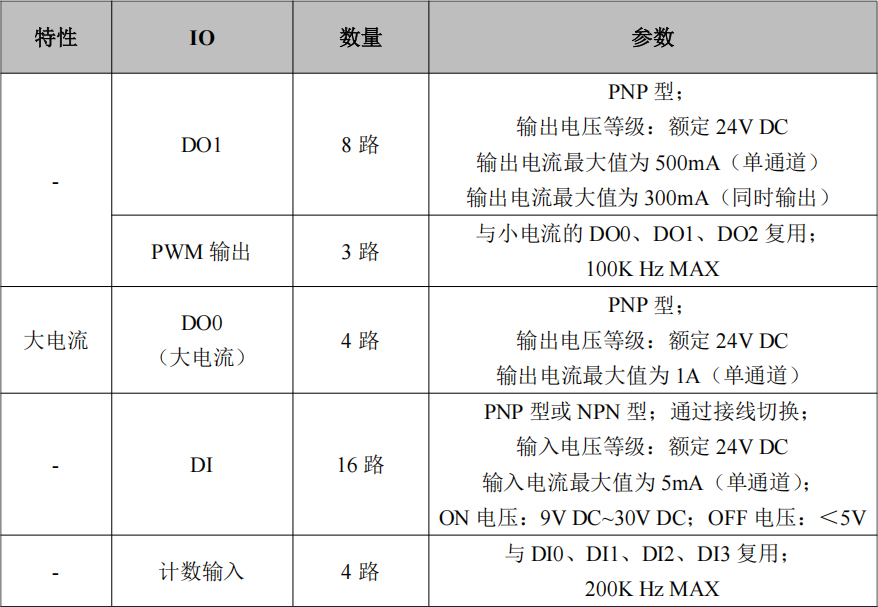

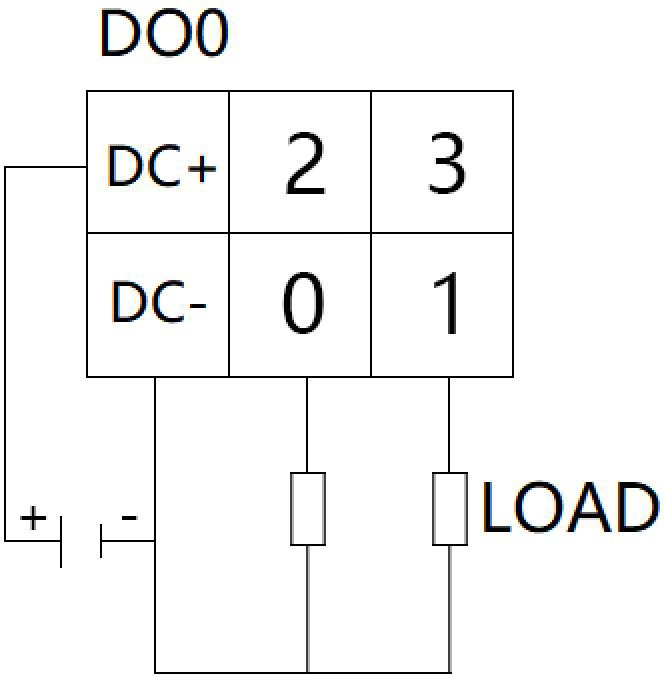

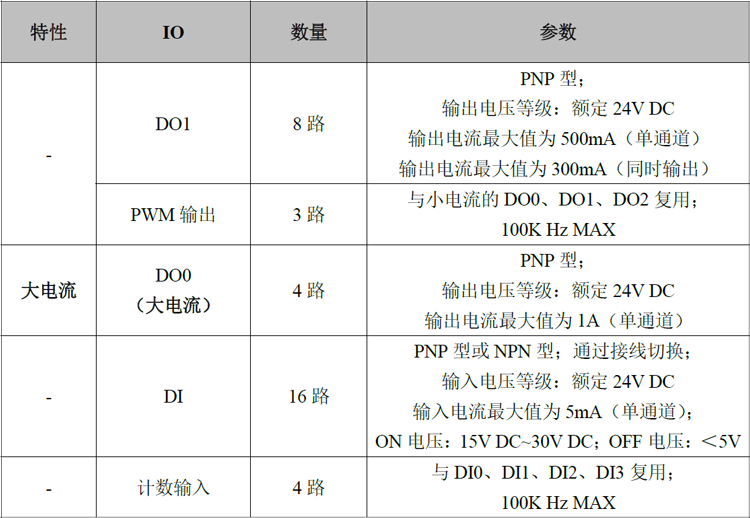

●8路普通DO（复用3路PWM脉冲输出）+4路大电流DO（1A/路）；
●8 ordinary DO channels (multiplexed with 3 PWM pulse outputs)+4 high current DO channels (1A/channel);

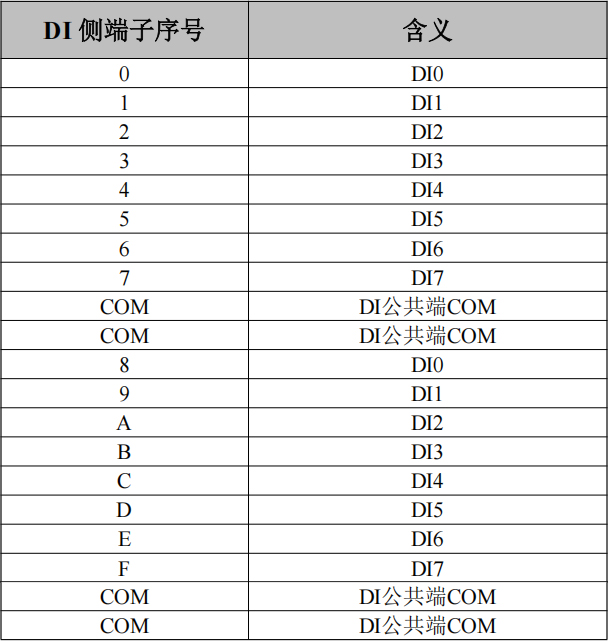

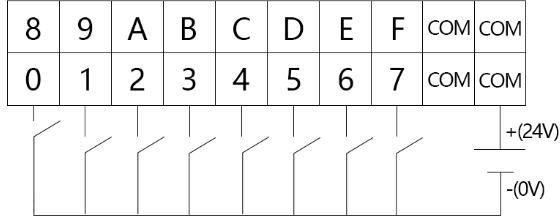

●16路DI（复用4路计数输入）；
●16 DI channels (multiplexed with 4 counting inputs);

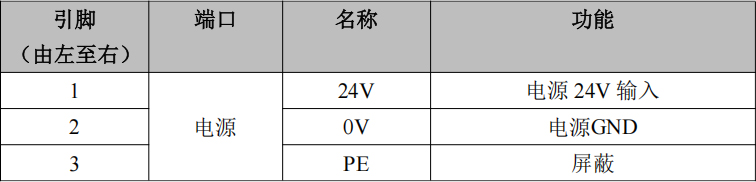

●电源采用24V DC（-15%/+20%）；
●The power supply adopts 24V DC (-15%/+20%);
●通信隔离为1500V DC（除RS232）；
●Communication isolation is 1500V DC (excluding RS232);

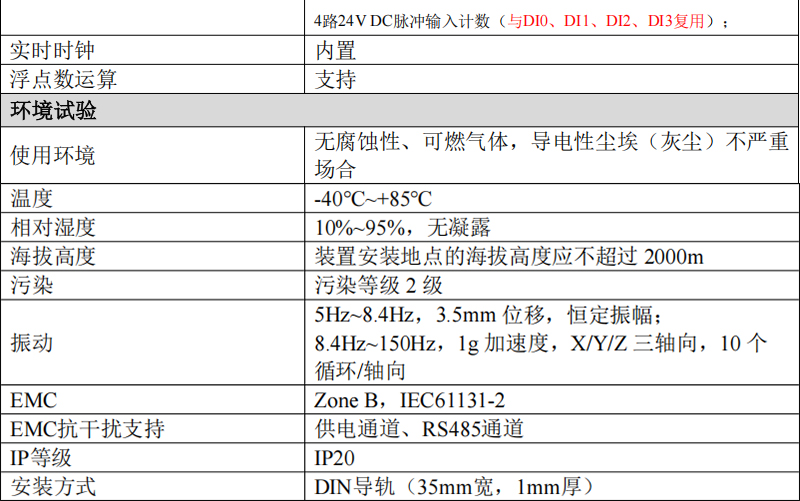

●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●防护等级：IP20；
● Protection level: IP20;
●EMC抗干扰等级：Zone B；
●EMC anti-interference level: Zone B;
●EMC抗干扰支持：供电通道、RS485通道；
●EMC anti-interference support: power supply channel, RS485 channel;

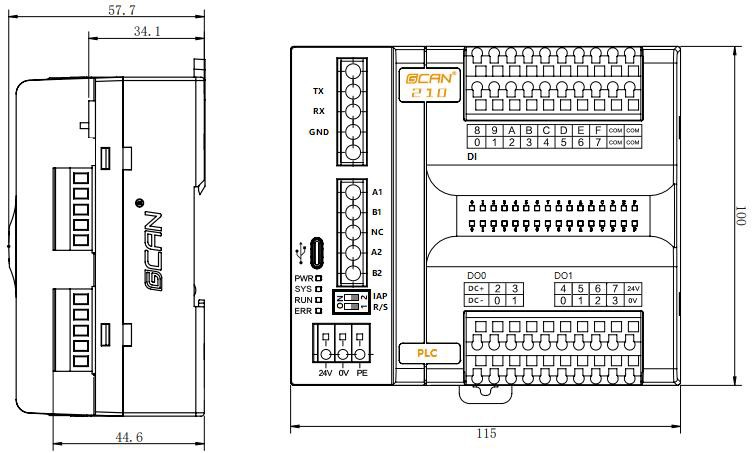

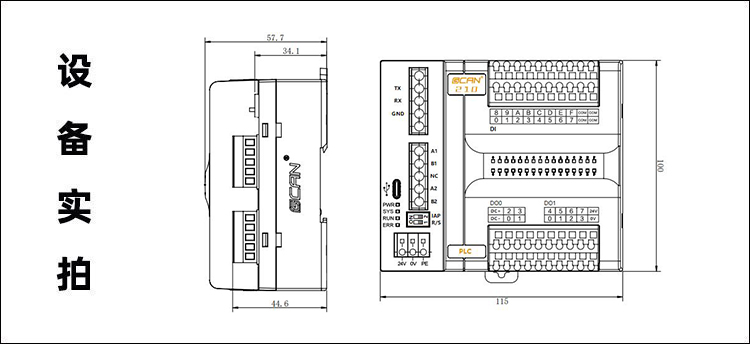

●尺寸：(长)115mm*(宽)100mm*(高)58mm。
●Size: (length) 115mm * (width) 100mm * (height) 58mm.

1.3典型应用
1.3 Typical Applications

●工业自动化控制核心
● Industrial automation control core
●模拟量闭环控制系统
● Analog closed-loop control system
●开关量开环控制，逻辑运算
● Switching open-loop control, logical operation
●ModBUS总线网络通讯
●ModBUS bus network communication

GCAN-PLC-210设备使用手册链接
GCAN-PLC-210 Equipment User Manual Link

www.gcgd.net/filedownload/2977789
