1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

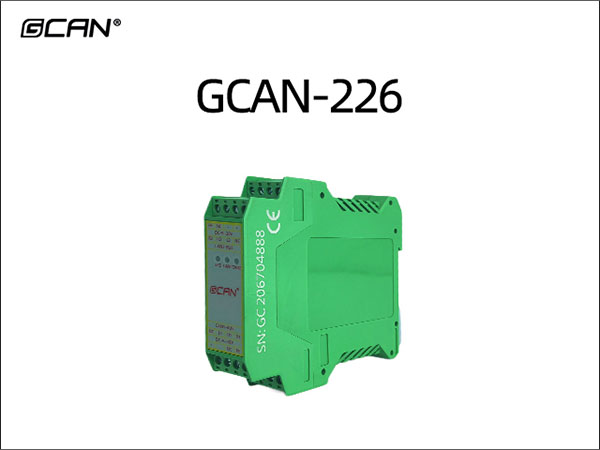

GCAN-226模块是集成2路CAN接口的高性能型CAN总线通讯中继模块。该型号CAN卡可兼容USB2.0总线全速规范，采用GCAN-226模块高性能CAN接口卡，无需连接PC即可起到不同CAN网络的中继，使波特率不同的CAN网络互相通信。
The GCAN-226 module is a high-performance CAN bus communication relay module that integrates two CAN interfaces. This model of CAN card is compatible with the USB 2.0 bus full speed specification and uses the GCAN-226 module high-performance CAN interface card. It can act as a relay for different CAN networks without connecting to a PC, allowing CAN networks with different baud rates to communicate with each other.

GCAN-226模块是连接不同CAN总线网络的高性能工具，同时具有体积小巧、即插即用等特点，也是便携式系统用户的最佳选择。GCAN-226模块集成CAN接口电气隔离保护模块，双路CAN分别隔离，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性；双路CAN分别集成指示灯，用以展示对应CAN总线状态。
The GCAN-226 module is a high-performance tool for connecting different CAN bus networks, with features such as small size and plug and play, making it the best choice for portable system users. The GCAN-226 module integrates a CAN interface electrical isolation protection module, with dual CAN isolated separately to prevent equipment damage caused by transient overcurrent/overvoltage, enhancing the reliability of the system in harsh environments; Dual channel CAN integrates indicator lights to display the corresponding CAN bus status.

GCAN-226模块接口卡可使用我公司自主开发的GCANTools通用测试/配置软件配置参数（非必要）。
The GCAN-226 module interface card can use our company's self-developed GCANTools universal testing/configuration software to configure parameters (non essential).

1.2性能特点
1.2 Performance Characteristics

●PC接口符合USB2.0全速规范，兼容USB1.1及USB3.0；
●The PC interface complies with the USB 2.0 full speed specification and is compatible with USB 1.1 and USB 3.0;
●集成2路CAN总线接口，使用凤凰端子接线方式；
● Integrate 2 CAN bus interfaces and use Phoenix terminal wiring method;
●支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
●Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
●CAN总线通讯波特率在5kps~1Mbps；
●The baud rate of CAN bus communication is between 5kps and 1Mbps;
●CAN总线自带120Ω终端电阻，可通过连线接入；
●The CAN bus comes with a 120 Ω terminal resistor, which can be connected through a wire;
●CAN总线接口采用电气隔离，隔离模块绝缘电压：1500V DC；
●The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;
●总线自动复位；
● Automatic bus reset;
●使用外接电源(9-30V DC)；
● Use an external power supply (9-30V DC);
●供电电流：(24V DC，40mA)；
●Power supply current: (24V DC, 40mA);
●最高接收数据流量：4000 fps；
●Maximum received data traffic: 4000 fps;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
●Static discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±2KV；
● Electrical fast transient burst immunity level: ± 2KV;
●浪涌抗扰度等级：电源接口±1KV。CAN总线接口±4KV；
●Surge immunity level: ± 1KV for power interface. ± 4KV for CAN bus interface;

1.3典型应用
1.3 Typical Applications

●汽车电子网络
● Automotive electronic network
●电力通讯网络
● Power communication network
●工业控制网络
Industrial control network
●高速、大数据量通讯
● High speed and large data communication

GCAN-226设备使用手册链接
GCAN-226 Equipment User Manual Link

www.gcgd.net/filedownload/2977776
