1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

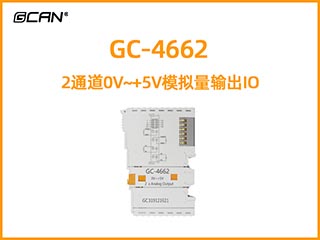

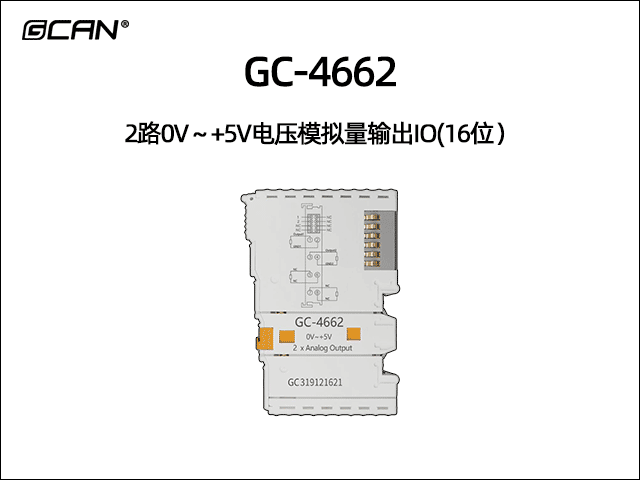

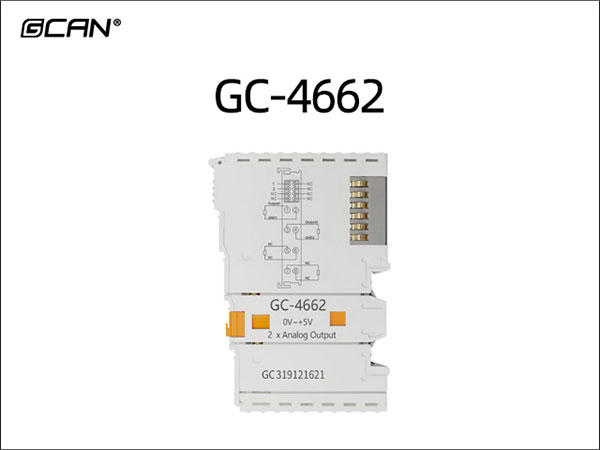

GC-4662（2通道模拟量输出模块，0V~+5V）可用于输出0V~+5V范围内的信号。该端子模块能够为处理层提供分辨率为16位的电气隔离信号。GC-4662模块有2个两线制的输出端，特别适合安装在控制柜内以节省空间。GC-4662模块有一个公共接地电位端，电源触点被连接在一起。输出端的基准接地为0V电源触点。
GC-4662 (2-channel analog output module, 0V~+5V) can be used to output signals within the range of 0V~+5V. This terminal module can provide electrical isolation signals with a resolution of 16 bits for the processing layer. The GC-4662 module has two two-wire output terminals, making it particularly suitable for installation in control cabinets to save space. The GC-4662 module has a common ground potential terminal, and the power contacts are connected together. The reference ground of the output terminal is the 0V power supply contact.

1.2性能特点
1.2 Performance Characteristics

●输出点数为2个；
●The output point count is 2;
●信号电压为0V~+5V；
●The signal voltage is 0V~+5V;
●通过GC-bus供电；
● Powered by GC bus;
●负载大于或等于500Ω；
●The load is greater than or equal to 500 Ω;
●测量分辨率为16位；
●The measurement resolution is 16 bits;
●转换时间约为3ms；
●The conversion time is about 3ms;
●精度（25℃）：±1%全量程；
●Accuracy (25 ℃): ± 1% of full range;
●电气隔离为1500 Vrms（GC-bus/信号电压）；
●Electrical isolation is 1500 Vrms (GC bus/signal voltage);
●过程映像中的位宽输出为2x 2字节；
●The bit width output in the process image is 2x 2 bytes;
●组态无地址设置，通过总线耦合器或控制器配置；
●Configuration without address setting, configured through bus coupler or controller;
●通过GCAN-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器供电；
●Powered by GCAN-PLC-3/4/5 series PLC main control module or GCAN-8X00 series coupler;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●可根据指令对外输出标准的模拟量信号；
●Can output standard analog signals to the outside according to instructions;
●可用于阀门、闸门等控制设备的开度调节；
● Can be used for adjusting the opening of control equipment such as valves and gates;
●接入总线耦合器或控制器，实现模拟量信号的传送。
●Connect to the bus coupler or controller to achieve the transmission of analog signals.

GC-4662设备使用手册链接
GC-4662 Equipment User Manual Link

www.gcgd.net/filedownload/2977851
