1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

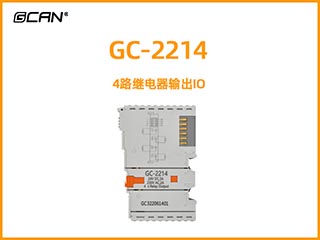

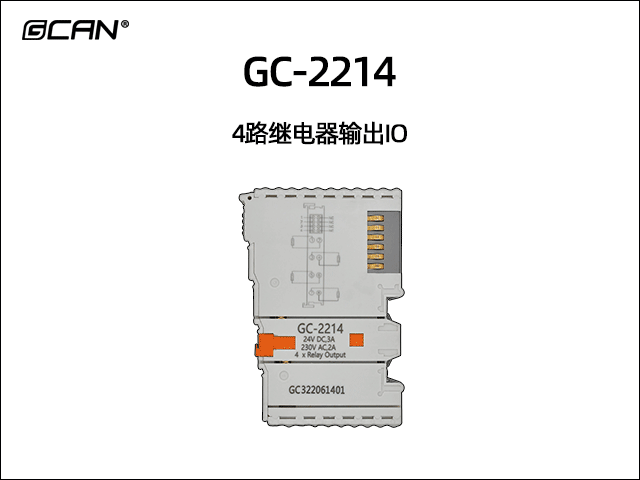

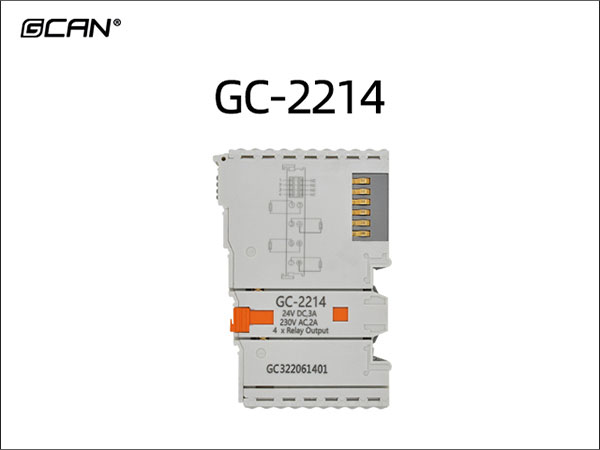

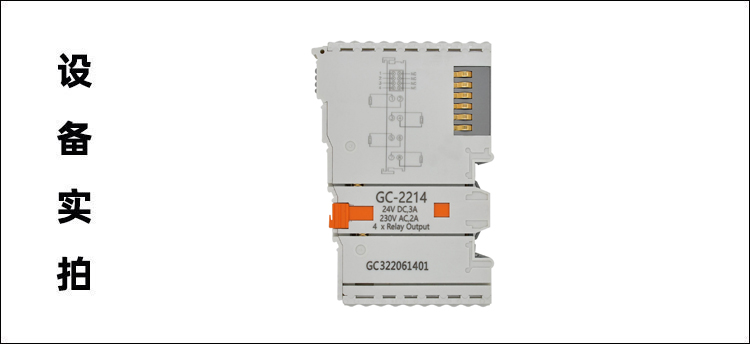

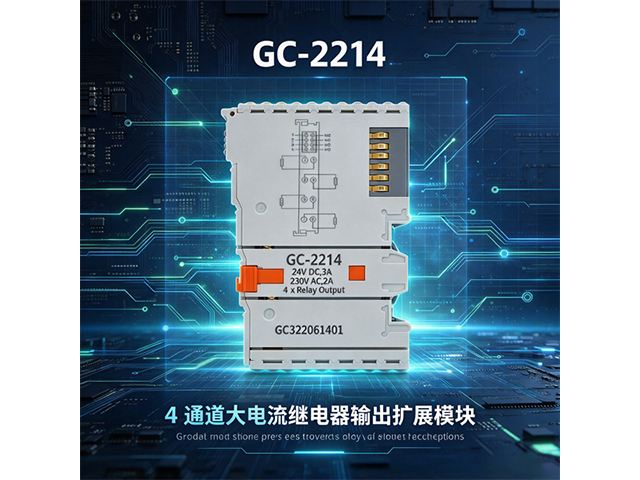

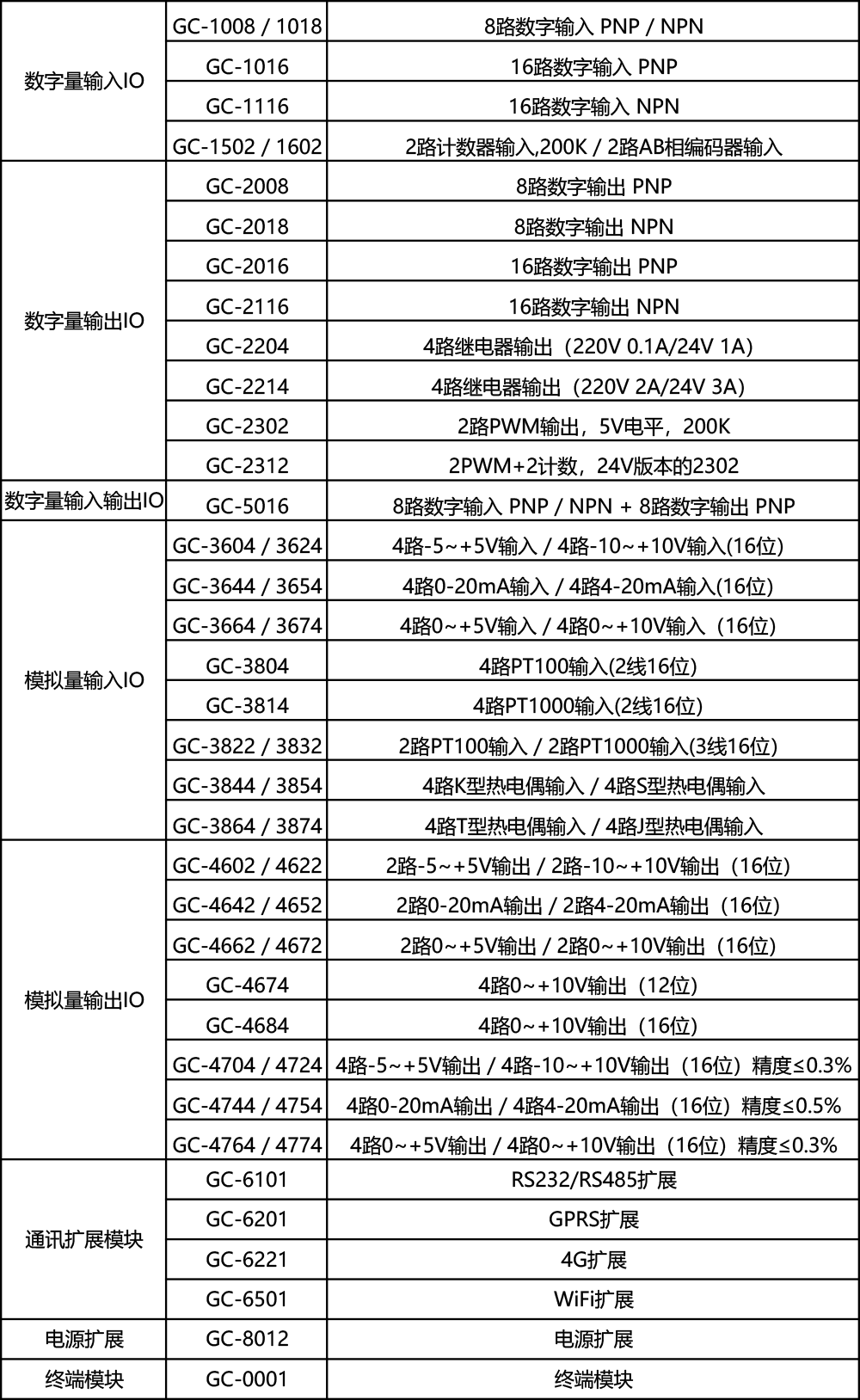

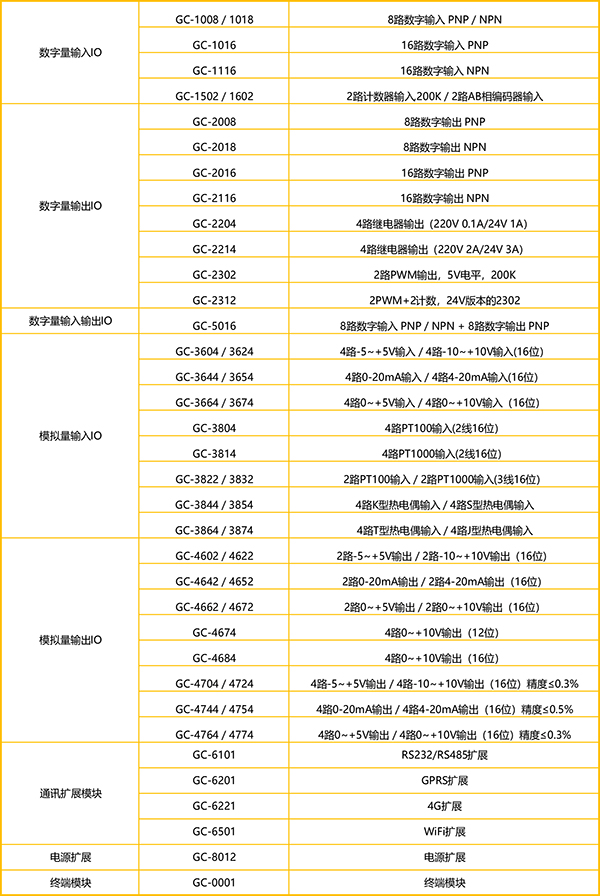

GC-2214模块是集成4路继电器输出通道的I/O模块。该模块可根据GCAN-PLC-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器发送的指令控制继电器的通断。
The GC-2214 module is an I/O module that integrates 4 relay output channels. This module can control the on/off of relays based on instructions sent by the GCAN-PLC-PLC-3/4/5 series PLC main control module or the GCAN-8X00 series coupler.

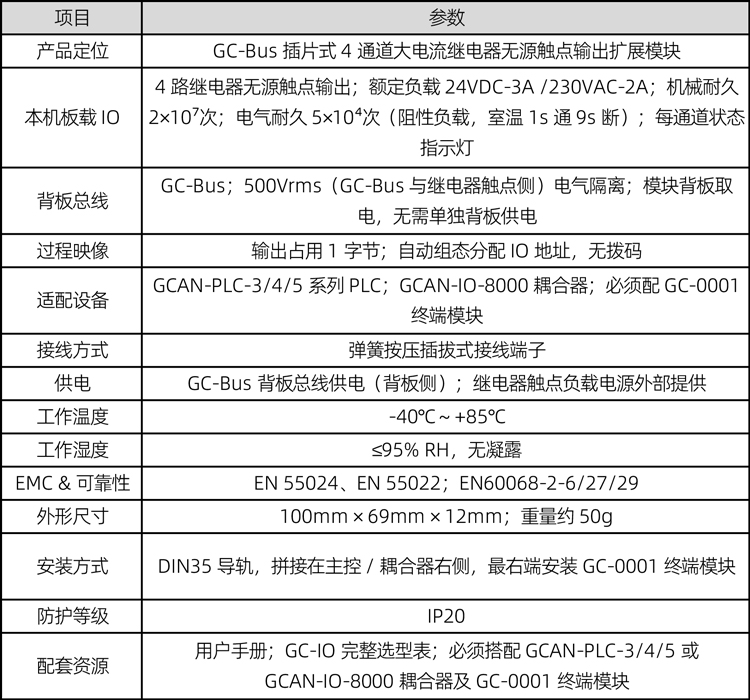

1.2性能特点
1.2 Performance Characteristics

●输出通道数为4个；
●The number of output channels is 4;
●额定负载1：2A 230V AC；
●Rated load 1:2A 230V AC;
●额定负载2：3A 24V DC；
●Rated load 2: 3A 24V DC;
●电气隔离为500Vrms（GC-bus信号电压）；
●Electrical isolation is 500Vrms (GC bus signal voltage);
●机械耐久度：2*107次；
●Mechanical durability: 2 * 107 cycles;
●电耐久度：5*104次（阻性负载，室温，1s通9s断）；
● Electrical durability: 5 * 104 times (resistive load, room temperature, 1 second on and 9 seconds off);
●组态无地址设置，通过总线耦合器或PLC控制器根据插片顺序自动组态；
●Configuration without address setting, automatically configured according to the insertion sequence through bus coupler or PLC controller;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●通过总线耦合器或控制器输出继电器信号。
●Output relay signals through bus couplers or controllers.

GC-2214设备使用手册链接
GC-2214 Equipment User Manual Link

www.gcgd.net/filedownload/2977831

如果您需要具体了解设备或者询价，可以加我微信或在线对话框联络。
If you need specific information about the equipment or inquire about the price,you can add me on WeChat or contact me through the online chat.
