1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

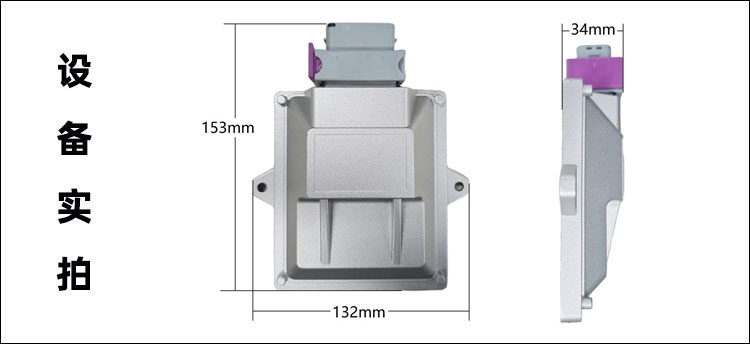

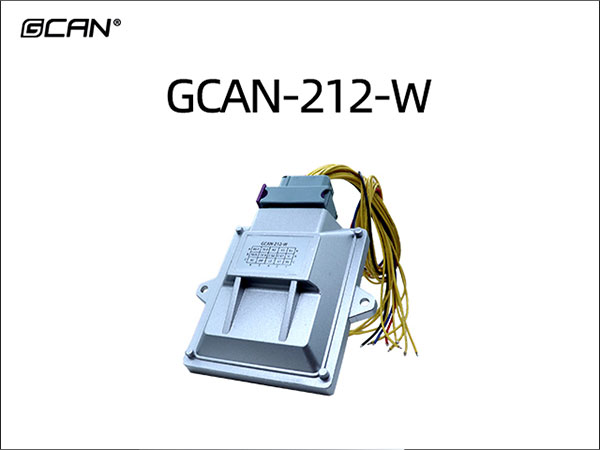

广成科技GCAN-212-W是一款工业级高性能CAN总线通讯接口卡，集成2路标准CAN接口与1路以太网接口。采用GCAN-212-W高性能CAN接口卡，用户可以轻松完成CAN-bus网络和以太网网络的互连互通，进一步拓展CAN-bus网络的范围。
Guangcheng Technology GCAN-212-W is an industrial grade high-performance CAN bus communication interface card that integrates 2 standard CAN interfaces and 1 Ethernet interface. By using the GCAN-212-W high-performance CAN interface card, users can easily interconnect CAN bus networks and Ethernet networks, further expanding the scope of CAN bus networks.

广成科技GCAN-212-W模块防护等级达IP65，可适应多尘、轻度潮湿等工业环境；广成科技GCAN-212-W上已集成CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。
The GCAN-212-W module from Guangcheng Technology has a protection level of IP65 and can adapt to industrial environments with high dust and mild humidity; The GCAN-212-W of Guangcheng Technology has integrated a CAN interface electrical isolation protection module, which prevents equipment damage caused by instantaneous overcurrent/overvoltage and enhances the reliability of the system in harsh environments.

广成科技GCAN-212-W高性能CAN接口卡支持二次开发。我公司为用户提供VB环境下的GCAN-212-W连接例程代码，用户可以根据此例程自行开发GCAN-212-W测试软件或将GCAN-212-W集成到现有的软件系统中。例程代码符合Socket通信规则。
Guangcheng Technology GCAN-212-W high-performance CAN interface card supports secondary development. Our company provides users with the GCAN-212-W connection routine code in VB environment. Users can develop their own GCAN-212-W testing software or integrate GCAN-212-W into existing software systems based on this routine. The routine code complies with Socket communication rules.

1.2性能特点
1.2 Performance Characteristics

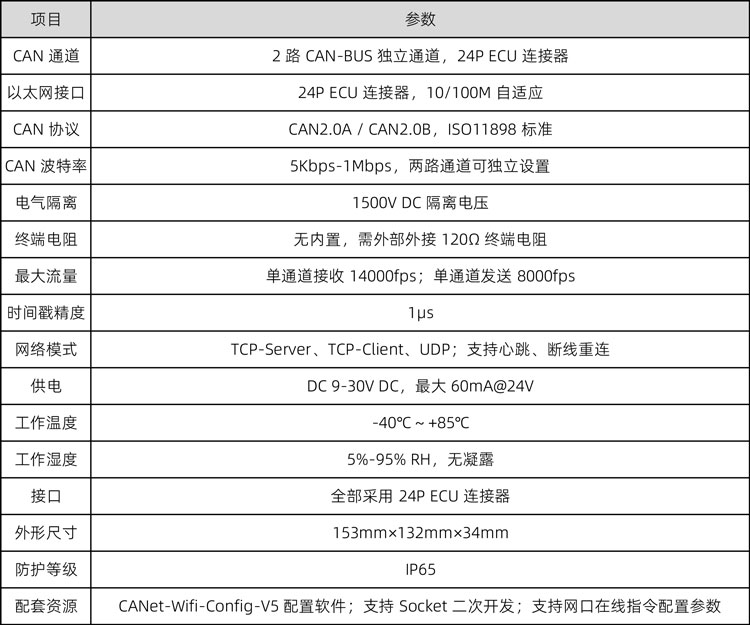

1.2.1硬件特点
1.2.1 Hardware Features

●高速的32位工业级处理器；
● High speed 32-bit industrial grade processor;
●内嵌硬件看门狗定时器；
Embedded hardware watchdog timer;
●模块内置FLASH储存器，可储存参数；
The module has a built-in FLASH memory that can store parameters;
●使用外接电源供电(9~30V DC）；
● Use an external power supply (9-30V DC) for power supply;
●供电电流：60mA（24V DC）；
Power supply current: 60mA (24V DC);
●工作温度范围：-40℃~+85℃；
Working temperature range: -40 ℃~+85 ℃;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
Static discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±2KV；
● Electrical fast transient burst immunity level: ± 2KV;
●浪涌抗扰度等级：电源接口±1KV。CAN总线接口±4KV；
Surge immunity level: ± 1KV for power interface. ± 4KV for CAN bus interface;
●防护等级：IP65；
● Protection level: IP65;
●工作湿度范围：<95%RH无凝露；
● Working humidity range:<95% RH without condensation;

1.2.2CAN属性
1.2.2 CAN Attributes

●集成2路CAN-bus接口，2路CAN-bus分别隔离，采用端子接线方式；
● Integrate 2 CAN bus interfaces, isolate the 2 CAN bus separately, and use terminal wiring method;
●CAN-bus信号包括：CAN_H、CAN_L、CAN_GND；
The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
●CAN-bus支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS11898规范；
CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS11898 standard;
●CAN-bus通讯波特率在5Kbps~1Mbps之间任意可编程；
The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
●CAN-bus接口采用电气隔离，隔离模块绝缘电压：1500V DC；
The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;
●32个硬件FIFO接收缓冲器，最高发送数据流量：8000帧/秒；最高接收数据流量：14000帧/秒；
32 hardware FIFO receive buffers, maximum data transmission rate: 8000 frames per second; Maximum received data traffic: 14000 frames per second;
●CAN端接收报文时间戳精度可达1us。
The timestamp accuracy of receiving messages on the CAN end can reach 1us.

1.2.3以太网属性
1.2.3 Ethernet Properties

●以太网接口形式为端子，支持10/100M自适应；
The Ethernet interface is in the form of a terminal and supports 10/100M adaptive mode;
●支持心跳和超时断开功能；
● Support heartbeat and timeout disconnection function;
●工作端口、目标IP和目标端口均可设定；
The working port, target IP, and target port can all be set;
●网络断开后自动恢复连接资源，可靠地建立TCP连接；
Automatically restore connection resources after network disconnection and reliably establish TCP connections;
●兼容SOCKET工作方式（TCP Server、TCP Client、UDP等），上位机通讯软件编写遵从标准的SOCKET规则。
Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software for the upper computer follows standard SOCKET rules.

1.3典型应用
1.3 Typical Applications

●CAN-bus网络诊断与测试
CAN bus network diagnosis and testing
●工业以太网连接至CAN网络
Industrial Ethernet connection to CAN network
●电力通讯网络
● Power communication network
●工业控制设备
Industrial control equipment
●高速、大数据量通讯
● High speed and large data communication

GCAN-212-W设备使用手册链接
GCAN-212-W Equipment User Manual Link

www.gcgd.net/filedownload/2977768
