1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

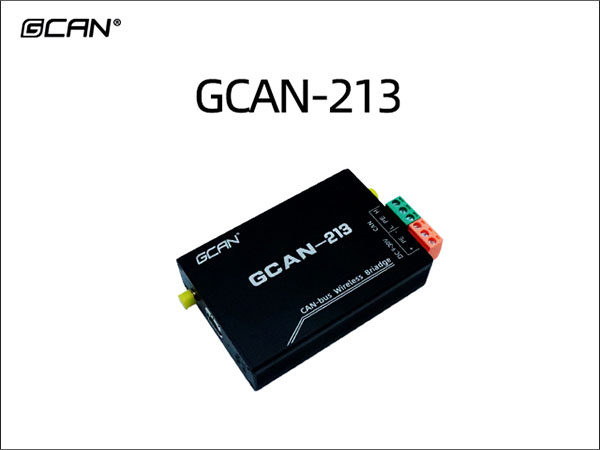

广成科技GCAN-213是一种CAN总线无线网桥，可用于在两个CAN系统之间通过无线传输信息。使用GCAN-213 CAN总线无线网桥，用户可以轻松完成两个CAN-bus网络的互连互通，进一步拓展CAN-bus网络的范围。
Guangcheng Technology GCAN-213 is a CAN bus wireless bridge that can be used to wirelessly transmit information between two CAN systems. By using the GCAN-213 CAN bus wireless bridge, users can easily achieve interconnection and intercommunication between two CAN bus networks, further expanding the range of CAN bus networks.

广成科技GCAN-213由一对无线电收发器组成，工作在2.4GHz ISM频段。可提供最大允许发射功率，确保连接可靠，并最大限度地提高通信距离，全向天线支持任何方向的发射和接收。
Guangcheng Technology GCAN-213 consists of a pair of wireless transceivers and operates in the 2.4GHz ISM frequency band. It can provide maximum allowable transmission power, ensure reliable connection, and maximize communication distance. The omnidirectional antenna supports transmission and reception in any direction.

由于2.4 GHz ISM频段可用于许多不同的无线电技术，因此它受到各种规则的约束，这些规则旨在在使用相同频段的发射端和接收端密集分布的区域建立共存，可能会出现无线信号通信质量下降的情况。
Due to the fact that the 2.4 GHz ISM frequency band can be used for many different radio technologies, it is subject to various rules aimed at establishing coexistence in densely distributed areas of transmitting and receiving ends using the same frequency band, which may result in a decrease in wireless signal communication quality.

1.2性能特点
1.2 Performance Characteristics

●2.4GHz专属协议，内置天线，最大天线输出功率27dBm；
2.4GHz exclusive protocol, built-in antenna, maximum antenna output power of 27dBm;
●USB接口：USB2.0全速接口，兼容USB1.1，USB3.0；
USB interface: USB 2.0 full speed interface, compatible with USB 1.1 and USB 3.0;
●CAN接口：遵循ISO 11898标准，支持CAN2.0A/B；
CAN interface: Following ISO 11898 standard, supporting CAN2.0A/B;
●CAN波特率：5Kbit/s~1Mbit/s；
CAN baud rate: 5Kbit/s~1Mbit/s;
●电气隔离：3000V，DC-DC；
Electrical isolation: 3000V, DC-DC;
●供电电压：9到30V DC（±5%）；
Power supply voltage: 9 to 30V DC (± 5%);
●供电电流：200mA（24V DC）；
Power supply current: 200mA (24V DC);
●工作温度：-40℃~+85℃；
Working temperature: -40 ℃~+85 ℃;
●工作湿度：15%~90%RH，无凝露；
Working humidity: 15%~90% RH, no condensation;
●EMC测试：EN 55024:2011-09，EN 55022:2011-12；
EMC testing: EN 55024:2011-09, EN 55022:2011-12;
●防护等级：IP 20；
Protection level: IP 20;
●尺寸：114*64*24mm。
Size: 114 * 64 * 24mm.

1.3典型应用
1.3 Typical Applications

●CAN-bus网络诊断与测试
CAN bus network diagnosis and testing
●智慧城市、工业物联网
Smart City, Industrial Internet of Things
●无线遥控、无人机
● Wireless remote control, unmanned aerial vehicle
●移动车辆CAN-bus总线调试
● Mobile vehicle CAN bus debugging

GCAN-213设备使用手册链接
GCAN-213 Equipment User Manual Link

www.gcgd.net/filedownload/2977770

如果您需要具体了解设备或者询价，可以加我微信或在线对话框联络。
If you need specific information about the equipment or inquire about the price,you can add me on WeChat or contact me through the online chat.
