1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

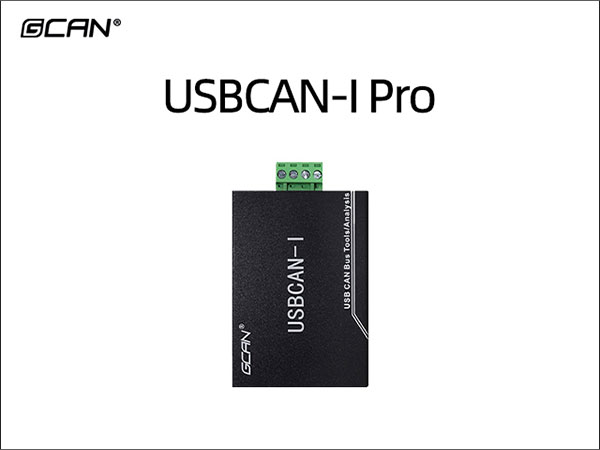

USBCAN-I Pro是集成1路CAN接口的高性能型CAN-bus总线通讯接口卡。该型号CAN卡可兼容USB2.0总线全速规范，采用USBCAN-I Pro高性能CAN接口卡，PC可以通过USB接口快速连接至CAN-bus网络，构成现场总线实验室、工业控制、智能小区、汽车电子网络等CAN-bus网络领域中数据处理、数据采集的CAN-bus网络控制节点。
USBCAN-I Pro is a high-performance CAN-bus communication interface card that integrates a single CAN interface. This CAN card is compatible with the USB2.0 bus full-speed specification. By utilizing the USBCAN-I Pro high-performance CAN interface card, a PC can quickly connect to the CAN-bus network via the USB interface, forming a CAN-bus network control node for data processing and data acquisition in CAN-bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks.

USBCAN-I Pro高性能CAN接口卡是CAN-bus产品开发、CAN-bus数据分析的强大工具；同时具有体积小巧、即插即用等特点，也是便携式系统用户的最佳选择。USBCAN-I Pro接口卡上自带USB接口，集成CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。
The USBCAN-I Pro high-performance CAN interface card is a powerful tool for CAN-bus product development and CAN-bus data analysis. It also features compact size and plug-and-play functionality, making it the best choice for portable system users. The USBCAN-I Pro interface card comes with a built-in USB interface and integrates a CAN interface electrical isolation protection module, which prevents damage to the device due to instantaneous overcurrent/overvoltage and enhances the reliability of the system in harsh environments.

USBCAN-I Pro高性能CAN接口卡支持Windows XP/Win7/Win8/Win10等32位/64位操作系统，还可支持各版本Linux操作系统。我公司为用户提供统一的应用程序编程接口和完整的应用示范代码，含C#、LabVIEW、Python、Qt、VB.NET、VB、VC等开发例程示范，方便用户进行应用程序开发。
The USBCAN-I Pro high-performance CAN interface card supports 32-bit/64-bit operating systems such as Windows XP/Win7/Win8/Win10, as well as various versions of Linux operating systems. Our company provides users with a unified application programming interface and complete application demonstration code, including development routine demonstrations in C#, LabVIEW, Python, Qt, VB.NET, VB, VC, etc., to facilitate application development for users.

USBCAN-I Pro接口卡可使用我公司自主开发的GCANTools通用测试软件，可执行CAN-bus报文的收发和监测等功能。
The USBCAN-I Pro interface card can utilize our company's proprietary GCANTools universal testing software, enabling functions such as transmitting, receiving, and monitoring CAN-bus messages.

1.2性能特点
1.2 Performance Characteristics

●PC接口符合USB2.0全速规范，兼容USB1.1及USB3.0；
● The PC interface complies with the USB2.0 full-speed specification and is compatible with USB1.1 and USB3.0;
●集成1路CAN-bus接口，使用插拔式端子接线方式；
● Integrates one CAN-bus interface, utilizing a plug-in terminal wiring method;
●支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
● Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
●CAN-bus通讯波特率在5Kbps~1Mbps之间任意可编程；
● The CAN-bus communication baud rate is programmable within the range of 5Kbps to 1Mbps;
●使用USB总线电源供电(+5V DC，130mA)；
● Powered by USB bus (+5V DC, 130mA);
●CAN-bus接口采用电气隔离，隔离模块绝缘电压：3000V DC；
● The CAN-bus interface employs electrical isolation, with an isolation module insulation voltage of 3000V DC;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
● Electrostatic discharge immunity level: contact discharge ±4KV, air discharge ±8KV;
●电快速瞬变脉冲群抗扰度等级：CAN总线接口±2KV；
● Electrical fast transient/burst immunity level: CAN bus interface ±2KV;
●浪涌抗扰度等级：CAN总线接口±4KV；
● Surge immunity level: CAN bus interface ±4KV;
●最高接收数据流量：14000 fps；
●Maximum received data flow: 14000 fps;
●CAN端接收报文时间戳精度可达1us；
● The precision of the timestamp for messages received at the CAN terminal can reach 1us;
●支持WinXP、Win7、Win8、Win10等Windows操作系统；
● Supports Windows operating systems such as WinXP, Win7, Win8, and Win10;
●支持Linux操作系统；
● Supports Linux operating system;
●支持GCANTools测试软件；
● Supports GCANTools testing software;
●工作温度范围：-40℃~+85℃；
● Operating temperature range: -40℃~+85℃;

1.3典型应用
1.3 Typical Applications

●CAN-bus网络诊断与测试
● CAN-bus network diagnosis and testing
●汽车电子应用
● Automotive electronics applications
●电力通讯网络
● Power communication network
●工业控制设备
● Industrial control equipment
●高速、大数据量通讯
● High-speed, large-data-volume communication

USBCAN-I Pro设备使用手册链接
Link to the user manual for USBCAN-I Pro device

www.gcgd.net/filedownload/2977739
