1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

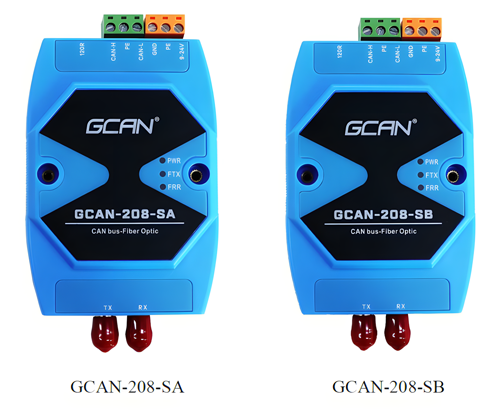

沈阳广成科技有限公司GCAN-208-S系列模块是集成1路标准光纤接口（SC、ST、FC，单模、多模，单芯、双芯可选）、1路标准CAN总线接口的工业级CAN总线转光纤转换器。
The GCAN-208-S series module from Shenyang Guangcheng Technology Co., Ltd. is an industrial grade CAN bus to fiber converter that integrates one standard fiber optic interface (SC, ST, FC, single-mode, multi-mode, single core, dual core optional) and one standard CAN bus interface.

GCAN-208-S系列模块是专门为了消防主机联网设计的，可以将CAN总线数据转换成光信号通过光纤传输。通过成对使用的GCAN-208-SA和GCAN-208-SB模块，用户可以轻松的延长CAN总线的通信距离，最远可达13公里（可通过增加中继的方式延长通讯距离）。
The GCAN-208-S series module is specifically designed for the networking of fire control hosts, and can convert CAN bus data into optical signals for transmission through optical fibers. By using the GCAN-208-SA and GCAN-208-SB modules in pairs, users can easily extend the communication distance of the CAN bus, up to 13 kilometers (which can be extended by adding relays).

GCAN-208-S系列模块支持点对点的连接方式，无需任何设置即可直接通信，通信波特率5Kbps~500Kbps，收到接入设备数据包按位直接转发，没有任何缓存，只是在物理层转换，电转光，光转电。
The GCAN-208-S series module supports point-to-point connection, allowing for direct communication without any settings. The communication baud rate ranges from 5Kbps to 500Kbps, and data packets received from access devices are forwarded bit by bit without any caching. It only performs physical layer conversion, electrical to optical, and optical to electrical conversion.

模块可以防止总线受到电磁干扰、地环干扰、雷击等对总线和设备造成的损坏。是工业总线改造、长距离通信、隔离总线干扰的关键性工具。模块的CAN总线接口已集成隔离保护模块，使其避免由于瞬间的过压过流而对模块造成损坏，同时该模块具有体积小巧、即插即用等特点，也是现有系统集成的最佳选择。
Modules can prevent damage to the bus and equipment caused by electromagnetic interference, ground loop interference, lightning strikes, etc. It is a key tool for industrial bus transformation, long-distance communication, and isolation of bus interference. The CAN bus interface of the module has integrated an isolation protection module to prevent damage to the module caused by instantaneous overvoltage and overcurrent. At the same time, this module has the characteristics of small size, plug and play, and is also the best choice for existing system integration.

1.2性能特点
1.2 Performance Characteristics

1.2.1硬件特点
1.2.1 Hardware Features

●使用外接电源供电(9~30V DC±5%)；50mA MAX（24V DC）；
● Use an external power supply (9-30V DC ± 5%) for power supply; 50mA MAX（24V DC）；
●工作温度范围：-40℃~+85℃；
● Working temperature range: -40 ℃~+85 ℃;
●工作湿度范围：15%~95%RH无凝露；
● Working humidity range: 15%~95% RH without condensation;

1.2.2 CAN属性
1.2.2 CAN Attributes

●集成1路CAN总线接口，使用端子接线方式；
● Integrate 1 CAN bus interface and use terminal wiring method;
●CAN总线信号包括：CAN_H、CAN_L、EARTH；
The CAN bus signals include CAN_S, CAN_L, and EARTH;
●CAN总线自带120Ω终端电阻，可通过拨码开关选择；
The CAN bus comes with a 120 Ω terminal resistor, which can be selected through a dip switch;
●CAN总线支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
The CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
●CAN总线通讯波特率在5Kbps~500Kbps之间可通信；
CAN bus communication baud rate can communicate between 5Kbps~500Kbps;
●CAN总线接口采用电气隔离，隔离模块绝缘电压：3000V DC；
The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 3000V DC;

1.2.3光纤属性
1.2.3 Fiber optic properties

●光纤接口SC、ST、FC可选；
Fiber optic interfaces SC, ST, and FC are optional;
●光纤传输模式单模、多模可选；
Fiber optic transmission mode can be selected as single-mode or multi-mode;
●光纤数量单芯、双芯可选。
The number of optical fibers can be selected as single core or dual core.

1.3典型应用
1.3 Typical Applications

●消防报警系统联网；
● Networking of fire alarm system;
●CAN总线通信改造；
CAN bus communication transformation;
●风机等强干扰地区CAN总线防干扰改造；
CAN bus anti-interference transformation in areas with strong interference such as wind turbines;

1.4选型指南
1.4 Selection Guide

1.5应用图示
1.5 Application Diagram

光纤替代了导线，因此光纤总长度（第一台设备到最后一台设备之间的光纤，或者说全部光纤加起来）是13公里，超过13公里需要添加CAN中继器。（13公里是按照CAN波特率5K计算的，大于5K就不到13公里）
Fiber optic replaces wires, so the total length of fiber optic (the fiber optic between the first and last devices, or the sum of all fibers) is 13 kilometers. If it exceeds 13 kilometers, a CAN repeater needs to be added. (13 kilometers is calculated based on the CAN baud rate of 5K, and if it is greater than 5K, it will be less than 13 kilometers)

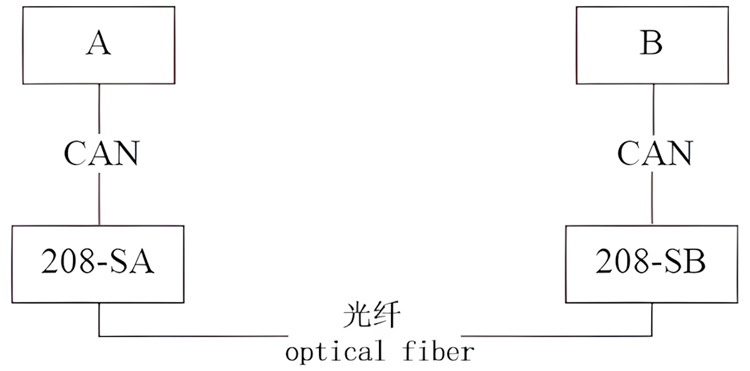

GCAN-208-S应用——成对使用
GCAN-208-S Application - Paired Use

GCAN-208-S设备使用手册链接
GCAN-208-S Equipment User Manual Link

www.gcgd.net/filedownload/2977764
