1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

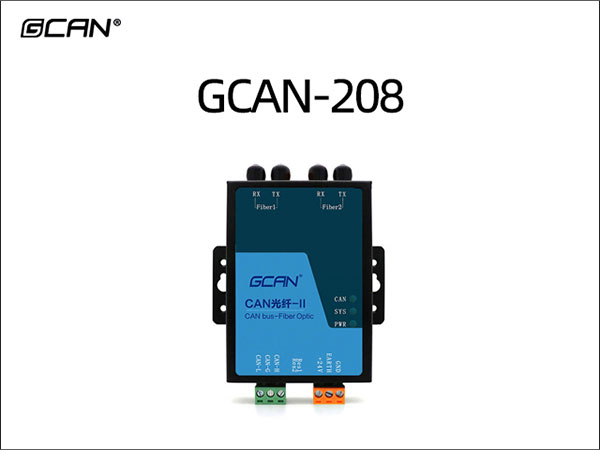

沈阳广成科技有限公司GCAN-208系列模块是集成1路（或2路）标准光纤接口（单模、多模，SC、ST、FC可选）、2路（或1路）标准CAN总线接口的工业级CAN总线转光纤转换器。
The GCAN-208 series module from Shenyang Guangcheng Technology Co., Ltd. is an industrial grade CAN bus to fiber converter that integrates 1 (or 2) standard fiber optic interfaces (single-mode, multi-mode, SC, ST, FC optional) and 2 (or 1) standard CAN bus interfaces.

GCAN-208系列模块可将CAN总线数据透明、无损的转换成光信号，再将光信号透明、无损的解析成CAN总线数据。广成科技使用独有的总线信号转换技术，可将CAN数据与光信号之间的转换时间做到微秒级，这样就保证了通信的实时性，GCAN-208可支持任何CAN总线通信协议如：CANopen、SAE J1939、DeviceNet、NMEA2000等等。
The GCAN-208 series module can transparently and non destructively convert CAN bus data into optical signals, and then transparently and non destructively parse the optical signals into CAN bus data. Guangcheng Technology uses unique bus signal conversion technology to achieve microsecond level conversion time between CAN data and optical signals, ensuring real-time communication. GCAN-208 can support any CAN bus communication protocol such as CANopen, SAE J1939, DeviceNet, NMEA2000, etc.

GCAN-208-1模块独特的双通道设备可以同时延长两条CAN总线的通信距离，GCAN-208-2模块具有两套光纤接口，可用于级联。该系列模块是工业总线改造、长距离通信、隔离总线干扰的关键性工具，模块的CAN总线接口已集成隔离保护模块，使其避免由于瞬间的过压过流而对模块造成损坏，可以防止总线受到电磁干扰、地环干扰、雷击等对总线和设备造成的损坏。
The unique dual channel device of GCAN-208-1 module can simultaneously extend the communication distance of two CAN buses, while GCAN-208-2 module has two sets of fiber optic interfaces that can be used for cascading. This series of modules is a key tool for industrial bus transformation, long-distance communication, and isolation of bus interference. The CAN bus interface of the module has integrated an isolation protection module, which prevents damage to the module due to instantaneous overvoltage and overcurrent, and can prevent damage to the bus and equipment caused by electromagnetic interference, ground loop interference, lightning strikes, etc.

产品已长期大量配套海湾、利达、青鸟、西门子、依爱、泛海三江、泰和安、赋安、皓安安全技术、青岛海汇德电气等公司系统使用；
The product has been widely used in the systems of companies such as Haiwan, Lida, Qingniao, Siemens, Yiai, Fanhai Sanjiang, Taihe An, Fu'an, Hao'an Safety Technology, and Qingdao Haihuide Electric for a long time;

1.2性能特点
1.2 Performance Characteristics

1.2.1硬件特点
1.2.1 Hardware Features

●高速的32位工业级处理器；
● High speed 32-bit industrial grade processor;
●内嵌硬件看门狗定时器；
Embedded hardware watchdog timer;
●电源防反接设计，外接电源供电(9~36V DC)；50mA MAX（24V DC）；
● Power anti reverse design, external power supply (9-36V DC); 50mA MAX（24V DC）；
●工作温度范围：-40℃~+85℃；
Working temperature range: -40 ℃~+85 ℃;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
Static discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±2KV；
● Electrical fast transient burst immunity level: ± 2KV;
●浪涌抗扰度等级：电源接口±1KV，CAN总线接口±4KV；
Surge immunity level: ± 1KV for power interface, ± 4KV for CAN bus interface;
●符合矿用产品安全认证、消防产品认证、汽车智能网联、储能等设计规范，可提供认证所需资料；
● Compliant with design specifications for mining product safety certification, fire protection product certification, automotive intelligent networking, energy storage, etc., and able to provide the necessary certification materials;

1.2.2 CAN属性
1.2.2 CAN Attributes

●集成2路（或1路）CAN总线接口，使用端子接线方式；
● Integrate 2 (or 1) CAN bus interfaces and use terminal wiring method;
●CAN总线信号包括：CAN_H、CAN_L、EARTH；
The CAN bus signals include CAN_S, CAN_L, and EARTH;
●CAN总线自带120Ω终端电阻，可通过拨码开关选择；
The CAN bus comes with a 120 Ω terminal resistor, which can be selected through a dip switch;
●CAN总线支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
The CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
●CAN总线通讯波特率在5Kbps~1Mbps之间可通过拨码开关配置；2路CAN总线波特率可任意设置；
The baud rate of CAN bus communication between 5Kbps and 1Mbps can be configured through a dip switch; The baud rate of the 2-channel CAN bus can be set arbitrarily;
●CAN总线接口采用电气隔离，隔离模块隔离电压：3000V DC；
The CAN bus interface adopts electrical isolation, and the isolation module isolation voltage is 3000V DC;
●每通道最高吞吐量：8000 fps/秒（CAN波特率1M，标准帧测试）；
● Maximum throughput per channel: 8000 fps/s (CAN baud rate 1M, standard frame test);

1.2.3光纤属性
1.2.3 Fiber optic properties

●光纤接口SC、ST、FC可选；
Fiber optic interfaces SC, ST, and FC are optional;
●光纤传输模式单模、多模可选；
Fiber optic transmission mode can be selected as single-mode or multi-mode;
●光纤数量单芯、双芯可选。
The number of optical fibers can be selected as single core or dual core.

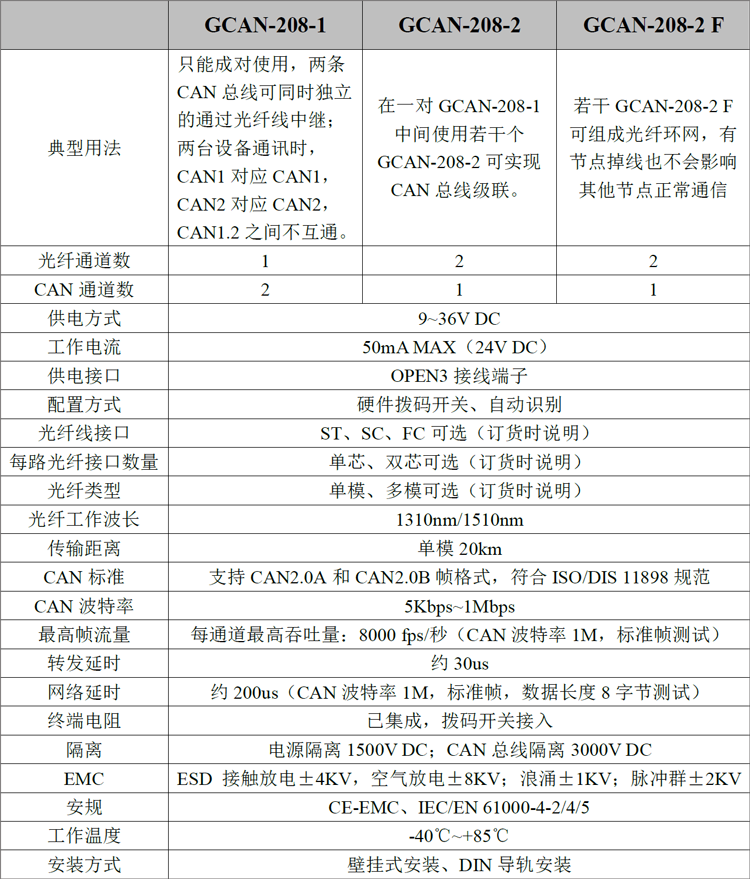

1.3选型指南
1.3 Selection Guide

1.4典型应用
1.4 Typical Applications

●CAN总线通信改造；
CAN bus communication transformation;
●CAN总线跨海远距离通信；
● CAN bus cross sea long-distance communication;
●风机等强干扰地区CAN总线防干扰改造；
CAN bus anti-interference transformation in areas with strong interference such as wind turbines;
●主控室与楼宇间长距离通信；
Long distance communication between the main control room and the building;
●消防报警系统联网；
● Networking of fire alarm system;
●远距离分布式通信系统；
● Long distance distributed communication system;
●新能源储能系统。
New energy storage system.

1.5典型应用图示
1.5 Typical Application Diagram

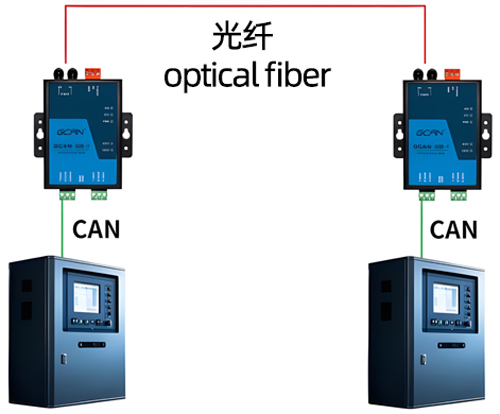

GCAN-208-1典型应用——成对点对点使用
GCAN-208-1 Typical Application - Paired Peer-to-Peer Usage

注：成对点对点使用时，CAN1对应CAN1，CAN2对应CAN2，CAN1.2之间不互通。
Note: When used in pairs, CAN1 corresponds to CAN1, CAN2 corresponds to CAN2, and CAN1.2 is not interoperable.

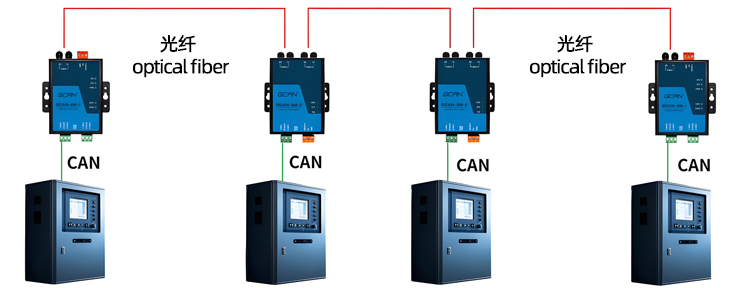

GCAN-208典型应用——链状手拉手级联
GCAN-208 Typical Application - Chain like Hand Handle Cascade

注：链状手拉手级联时，可以全部使用GCAN-208-2（注1）；也可以在网络始末两端使用GCAN-208-1（注2）
Note: When cascading chain handles, GCAN-208-2 (Note 1) can be used entirely; GCAN-208-1 can also be used at both ends of the network (Note 2)

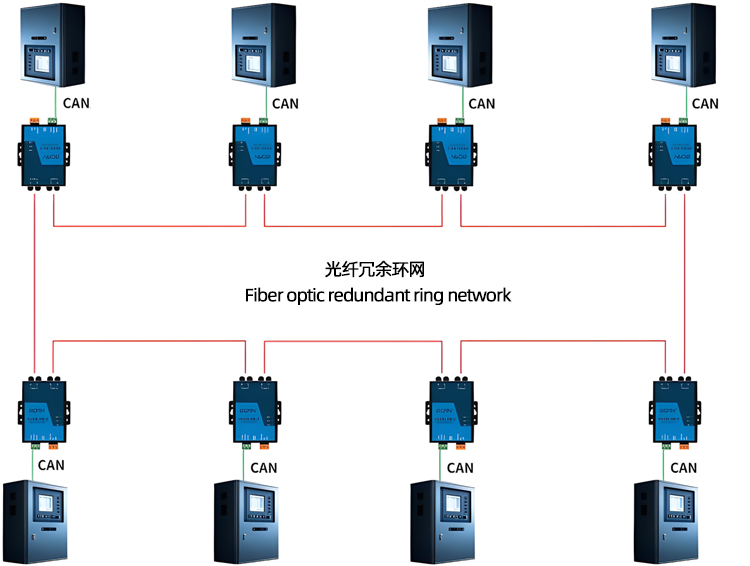

GCAN-208-2 F典型应用——环网
GCAN-208-2 F Typical Application - Ring Network

注：环网时，使用GCAN-208-2 F，单台设备或一段线路出现故障时，不影响系统中其他设备，保证系统稳定可靠的运行。
Note: When using GCAN-208-2 F in the ring network, if a single device or a section of the line fails, it will not affect other devices in the system, ensuring stable and reliable operation of the system.

1.6功能特点
1.6 Features

（1）GCAN-208系列光纤可以彻底隔离干扰，避免雷击、浪涌、电磁干扰等从双绞线导入。
(1) The GCAN-208 series optical fiber can completely isolate interference, avoiding lightning strikes, surges, electromagnetic interference, etc. from being introduced from twisted pair cables.

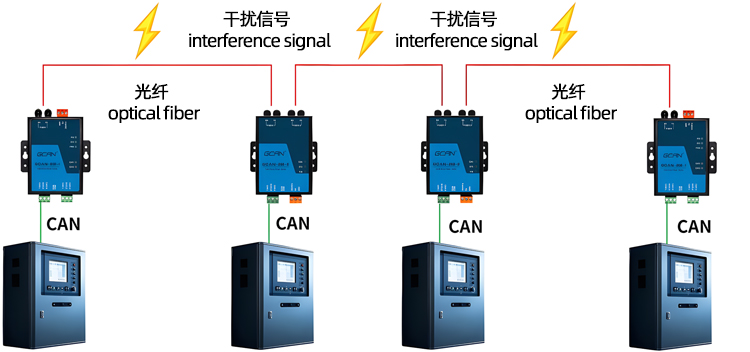

GCAN-208隔绝干扰
GCAN-208 Isolation of Interference

（2）GCAN-208系列光纤支持CAN总线网络的中继扩容，传输距离20km；支持不同波特率的CAN总线网络，CAN波特率支持5Kbps~1Mbps；支持CANopen、SAE J1939、DeviceNet、NMEA2000等任何CAN总线通信协议。
(2) The GCAN-208 series fiber optic supports relay expansion for CAN bus networks, with a transmission distance of 20km; supports CAN bus networks with different baud rates, with CAN baud rates ranging from 5Kbps to 1Mbps; Supports any CAN bus communication protocol such as CANopen, SAE J1939, DeviceNet, NMEA2000, etc.

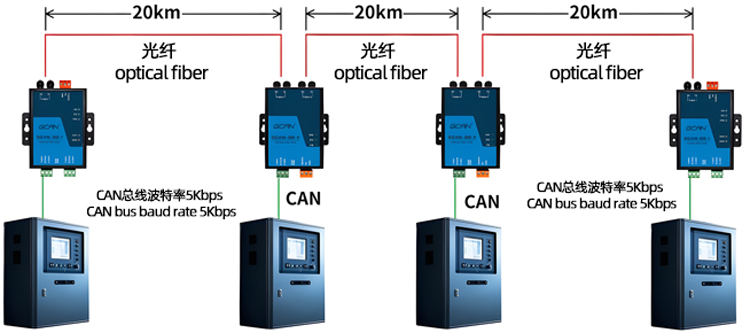

GCAN-208通信距离、波特率
GCAN-208 communication distance and baud rate

（3）GCAN-208系列支持点对点、链状（手拉手、总线式、级联）、星状、树状、环网或混合组网使用。
(3) The GCAN-208 series supports point-to-point, chain (handle, bus, cascade), star, tree, ring, or hybrid networking.

GCAN-208树状组网
GCAN-208 tree networking

GCAN-208设备使用手册链接
GCAN-208 Equipment User Manual Link

www.gcgd.net/filedownload/2977765
