1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

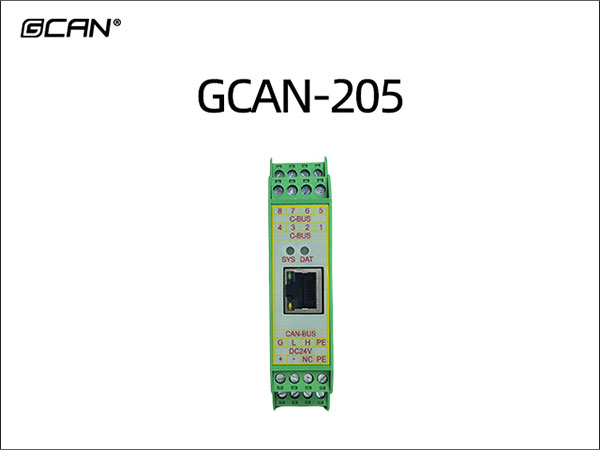

GCAN-205模块是集成1路标准以太网接口和1路标准CAN接口的ModbusTCP从站转CAN的协议转换模块。采用GCAN-205模块，用户可以轻松完成CAN总线网络和以太网网络的互连互通，进一步拓展CAN总线网络的范围。
The GCAN-205 module is a protocol conversion module that integrates one standard Ethernet interface and one standard CAN interface from Modbus TCP slave station to CAN. By using the GCAN-205 module, users can easily achieve interconnection and intercommunication between CAN bus network and Ethernet network, further expanding the scope of CAN bus network.

GCAN-205可以将以太网网络与CAN总线网络桥接，用户可以将此智能协议转换模块集成到自己的系统中，从而使本不具备相互通信能力的以太网网络与CAN总线快速具备通信能力，从而节省开发时间、降低开发成本、快速抢占市场先机。
GCAN-205 can bridge the Ethernet network with the CAN bus network. Users can integrate this intelligent protocol conversion module into their own system, enabling the Ethernet network and CAN bus, which do not have mutual communication capabilities, to quickly have communication capabilities. This saves development time, reduces development costs, and quickly seizes market opportunities.

GCAN-205模块现已被广泛应用于构建现场总线实验室、工业控制网络、智能小区监控等网络环境中。同时该设备具有体积小巧、即插即用等特点，且模块使用DIN导轨的安装方式，使其特别适用于工业现场或机柜中与其他设备配套使用。
The GCAN-205 module has been widely used in building network environments such as fieldbus laboratories, industrial control networks, and intelligent community monitoring. At the same time, the device has the characteristics of small size, plug and play, and the module uses a DIN rail installation method, making it particularly suitable for industrial sites or cabinets to be used in conjunction with other devices.

GCAN-205模块上已集成CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。用户可以通过附带的“Gan205 EtherCanConfigv3”软件对GCAN-205模块进行配置。目前该配置软件仅支持Modbus TCP-CAN协议之间转换的配置，对于以太网端或CAN端的其他标准或自定义协议，暂时不支持用户自己对其配置，如需要，我公司可为用户提供任意协议之间的配置服务。
The GCAN-205 module has integrated a CAN interface electrical isolation protection module, which prevents equipment damage caused by transient overcurrent/overvoltage and enhances the reliability of the system in harsh environments. Users can configure the GCAN-205 module through the included "Gan205 EtherCanConfigurav3" software. At present, this configuration software only supports the conversion configuration between Modbus TCP-CAN protocols. For other standard or custom protocols on the Ethernet or CAN side, it does not currently support users to configure them themselves. If necessary, our company can provide configuration services between any protocol for users.

1.2性能特点
1.2 Performance Characteristics

1.2.1硬件特点
1.2.1 Hardware Features

●高速的32位工业级控制器；
High speed 32-bit industrial grade controller;
●内嵌硬件看门狗定时器；
Embedded hardware watchdog timer;
●使用外接电源供电(24V DC，75mA)；
● Use an external power supply (24V DC, 75mA) for power supply;
●工作温度范围：-40℃~+85℃；
Working temperature range: -40 ℃~+85 ℃;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
Static discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±2KV；
● Electrical fast transient burst immunity level: ± 2KV;
●浪涌抗扰度等级：电源接口±1KV。CAN总线接口±4KV；
Surge immunity level: ± 1KV for power interface. ± 4KV for CAN bus interface;
●标准DIN导轨安装方式，专为工业设计。
Standard DIN rail installation method, specifically designed for industrial use.

1.2.2 CAN属性
1.2.2 CAN Attributes

●集成1路CAN总线接口，使用端子接线方式；
● Integrate 1 CAN bus interface and use terminal wiring method;
●CAN总线号包括：CAN_H、CAN_L、CAN_GND；
The CAN bus number includes: CAN_S, CAN_L, CAN_SND;
●CAN总线支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
The CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
●CAN总线通讯波特率在5kbps~1Mbps之间；
The baud rate of CAN bus communication is between 5kbps and 1Mbps;
●CAN总线接口采用电气隔离，隔离模块绝缘电压：1500V DC；
The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;

1.2.3以太网属性
1.2.3 Ethernet Properties

●RJ45，支持10/100M自适应；
RJ45, supports 10/100M adaptive;
●Modbus从站支持功能码：03H、04H、06H、16H；
Modbus slave support function codes: 03H, 04H, 06H, 16H;
●支持静态或动态IP获取；
● Support static or dynamic IP acquisition;
●网络断开后自动恢复连接资源，可靠地建立TCP连接；
Automatically restore connection resources after network disconnection and reliably establish TCP connections;
●兼容SOCKET工作方式，上位机通讯软件编写遵从标准的SOCKET规则。
Compatible with SOCKET working mode, the communication software of the upper computer follows standard SOCKET rules.

1.3典型应用
1.3 Typical Applications

●工业以太网设备与CAN网络设备互联
Interconnection between industrial Ethernet devices and CAN network devices
●电力通讯网络
● Power communication network
●工业控制设备
Industrial control equipment
●高速、大数据量通讯
● High speed and large data communication
●CAN总线与串行总线之间的网关网桥；
Gateway bridge between CAN bus and serial bus;
●工业现场网络数据监控；
Industrial site network data monitoring;
●CAN教学应用远程通讯；
● Remote communication for CAN teaching applications;
●CAN工业自动化控制系统；
CAN industrial automation control system;
●低速CAN网络数据采集数据分析；
Low speed CAN network data collection and analysis;
●智能楼宇控制数据广播系统等CAN总线应用系统。
Intelligent building control data broadcasting system and other CAN bus application systems.
●PLC设备连接CAN总线网络通讯；
PLC equipment is connected to the CAN bus network for communication;

GCAN-205设备使用手册链接
Link to GCAN-205 device user manual

www.gcgd.net/filedownload/2977760

如果您需要具体了解设备或者询价，可以加我微信或在线对话框联络。
If you need specific information about the equipment or inquire about the price, you can add me on WeChat or contact me through the online chat.
