1功能简介
1 Function Introduction

1.1功能概述
1.1 Function Overview

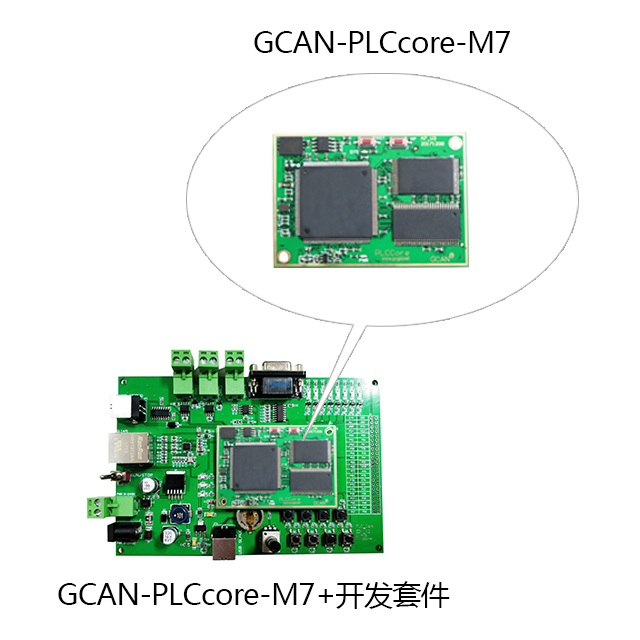

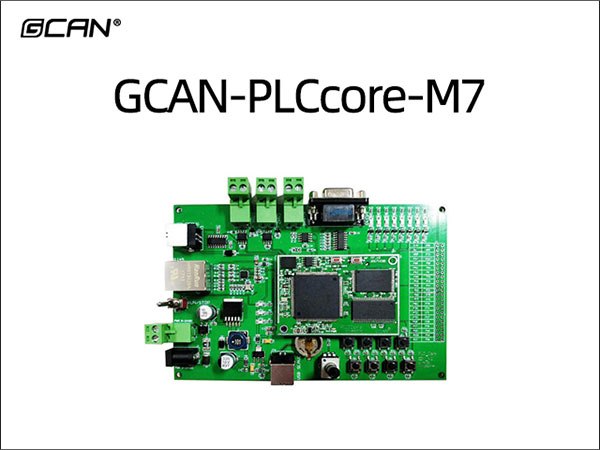

GCAN-PLCCore-M7是一种嵌入式PLC核心模块。该模块已经集成了PLC控制内核，支持用户使用符合IEC61131-3标准的五种编程语言对其编程，包括：CFC、SFC、LD、ST、IL并支持在线调试功能包括观看和设置变量、单周期、断点和单步执行等功能。
GCAN-PLCCore-M7 is an embedded PLC core module. This module has integrated a PLC control core and supports users to program it using five programming languages that comply with the IEC61131-3 standard, including CFC, SFC, LD, ST, IL, and supports online debugging functions such as viewing and setting variables, single cycle, breakpoint, and single step execution.

GCAN-PLCCore-M7非常适合过程信号处理、集中监控、智能网络节点、分布式控制系统使用，还可以作为大系统中的特殊组件，也可以用作运动控制器的核心PLC。
GCAN-PLCCore-M7 is highly suitable for process signal processing, centralized monitoring, intelligent network nodes, and distributed control systems. It can also be used as a special component in large systems and as the core PLC for motion controllers.

GCAN-PLCCore-M7核心模块已经包含整个PLC的运行环境和一部分存储外设，并且其还将芯片中的各种资源引出，提供多达4路UART，2路CAN，1路100M以太网，8路AD，2路DA，40个数字输入/输出，2个高速计数器输入和2路PWM输出。用户可以利用以上资源开发特定的程序进行采集与控制。该模块还可按需定制。
The GCAN-PLCCore-M7 core module already includes the operating environment of the entire PLC and some storage peripherals, and it also extracts various resources from the chip, providing up to 4 UART, 2 CAN, 1 100M Ethernet, 8 AD, 2 DA, 40 digital inputs/outputs, 2 high-speed counter inputs, and 2 PWM outputs. Users can use the above resources to develop specific programs for data collection and control. This module can also be customized as needed.

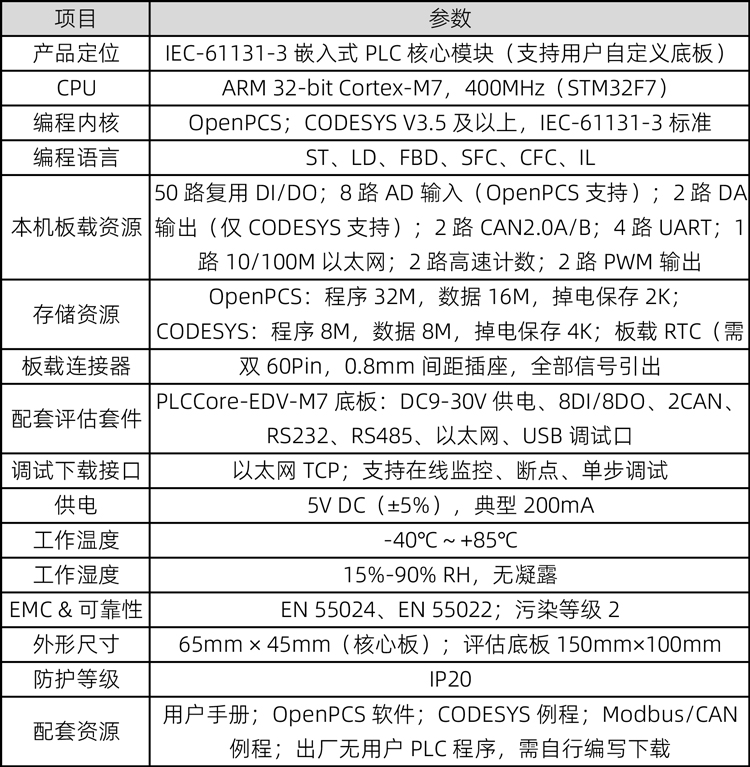

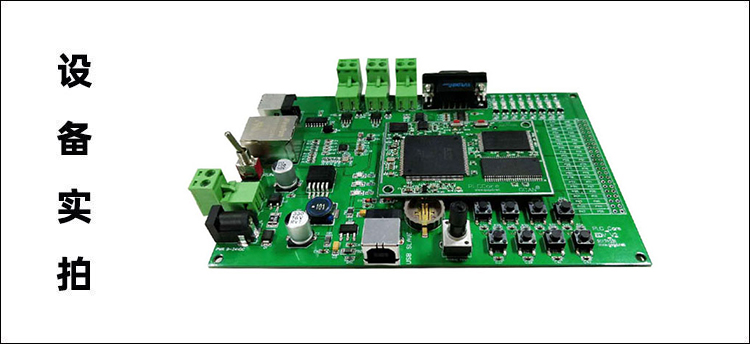

1.2 PLC核心板资源
1.2 PLC Core Board Resources

●CPU：ARM®32-bit Cortex®-M7内核，处理器频率400MHz；
●CPU：ARM ® 32-bit Cortex ®- M7 core, processor frequency 400MHz;
●4路UART、2路CAN、1路100M以太网；
●4 UART channels, 2 CAN channels, and 1 100M Ethernet channel;
●8路AD、2路DA；
●8 channels of AD and 2 channels of DA;
●40个数字输入/输出（复用）；
●40 digital inputs/outputs (multiplexed);
●2个高速计数器输入和2路PWM输出；
● 2 high-speed counter inputs and 2 PWM outputs;
●双60pin插座（在底部），方便接入各种底板；
● Dual 60 pin sockets (at the bottom) for easy access to various baseboards;
●1个5V&3.3V测试点，支持外接电源或输出电源给外部；
● 1 5V&3.3V test point, supporting external power supply or output power supply to the outside;
●1个电源指示灯，1个状态指示灯；
● 1 power indicator light, 1 status indicator light;
●1个复位按钮，可用于复位MCU和LCD。
● 1 reset button, which can be used to reset MCU and LCD.

1.3典型应用
1.3 Typical Applications

●工业级PLC开发；
● Industrial grade PLC development;
●CAN工业自动化控制系统开发。
●Development of CAN industrial automation control system.

GCAN-PLCcore-M7设备使用手册链接
GCAN-PLCcore-M7 Equipment User Manual Link

www.gcgd.net/filedownload/2977810
