1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

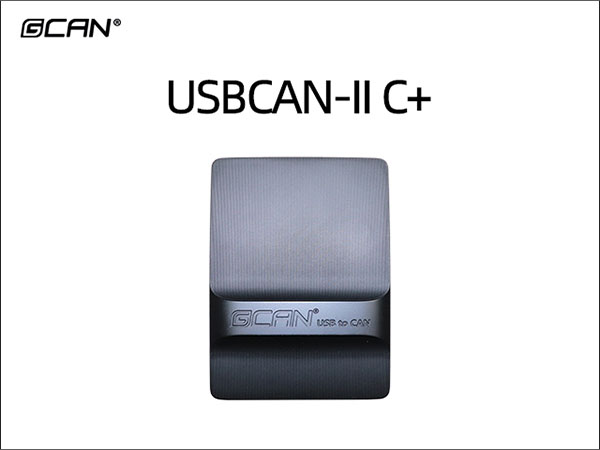

USBCAN-II C+是集成2路CAN接口的工业级CAN-bus总线通讯接口卡。该型号CAN卡可兼容USB2.0总线全速规范，采用USBCAN-II C+接口卡，PC可以通过USB接口快速连接至CAN-bus网络，构成现场总线实验室、工业控制、智能小区、汽车电子网络等CAN-bus网络领域中数据处理、数据采集的CAN-bus网络控制节点。
USBCAN-II C+ is an industrial-grade CAN-bus communication interface card that integrates two CAN interfaces. This model of CAN card is compatible with the USB2.0 bus full-speed specification. By using the USBCAN-II C+ interface card, a PC can quickly connect to the CAN-bus network through the USB interface, forming a CAN-bus network control node for data processing and data acquisition in CAN-bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks.

USBCAN-II C+接口卡是CAN-bus产品开发、CAN-bus数据分析的强大工具；同时具有体积小巧、即插即用等特点，也是便携式系统用户的最佳选择。USBCAN-II C+接口卡上自带CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。
The USBCAN-II C+ interface card serves as a robust tool for CAN-bus product development and CAN-bus data analysis. Additionally, its compact size and plug-and-play functionality make it an ideal choice for users of portable systems. Equipped with a built-in CAN interface electrical isolation protection module, the USBCAN-II C+ interface card effectively prevents equipment damage caused by transient overcurrent/overvoltage, thereby enhancing the reliability of the system in harsh environments.

USBCAN-II C+接口卡支持Windows 2000、XP、7、8、10等32位/64位操作系统。我公司为用户提供统一的应用程序编程接口和完整的应用示范代码，C#、LabVIEW、Python、Qt、VB.NET、VB、VC等开发例程示范，方便用户进行应用程序开发。
The USBCAN-II C+ interface card supports 32-bit/64-bit operating systems such as Windows 2000, XP, 7, 8, and 10. Our company provides users with a unified application programming interface and complete application demonstration code, as well as development routine demonstrations in C#, LabVIEW, Python, Qt, VB.NET, VB, VC, and other languages, to facilitate application development for users.

USBCAN-II C+接口卡可使用GCANTools、CAN Test和CAN Pro通用测试软件，可执行CAN-bus报文的收发和监测等功能。
The USBCAN-II C+ interface card can be used with GCANTools, CAN Test, and CAN Pro universal testing software to perform functions such as sending, receiving, and monitoring CAN-bus messages.

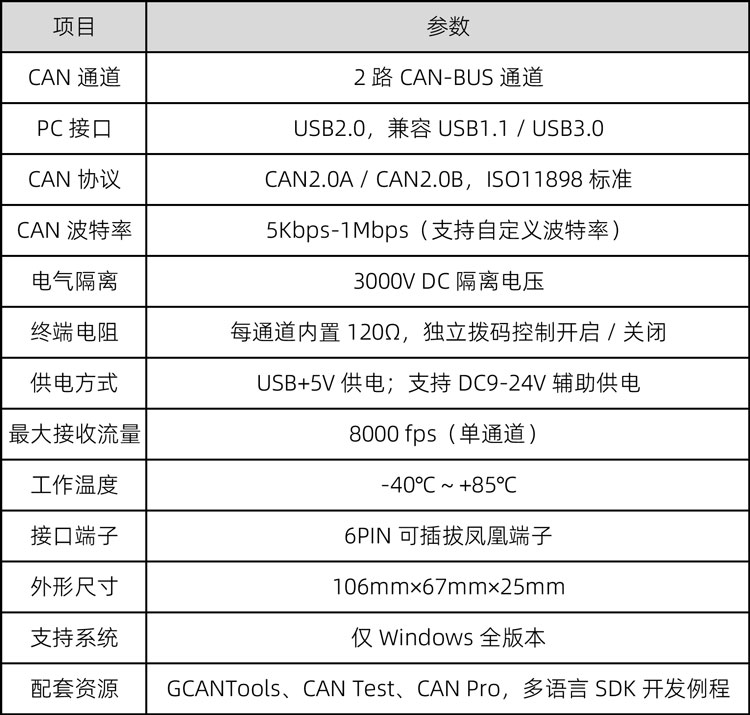

1.2性能特点
1.2 Performance Characteristics

●PC接口符合USB2.0全速规范，兼容USB1.1及USB3.0；
● The PC interface complies with the USB2.0 full-speed specification and is compatible with USB1.1 and USB3.0;
●集成2路CAN-bus接口，使用凤凰端子接线方式；
● Integrates 2 CAN-bus interfaces, using Phoenix terminal wiring method;
●支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
● Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
●CAN-bus通讯波特率在5Kbps~1Mbps之间任意可编程；
● The CAN-bus communication baud rate is programmable within the range of 5Kbps to 1Mbps;
●使用USB总线电源供电，或供电不足时增加外接电源(DC+9-24V，130mA)；
●Powered by USB bus, or add an external power supply (DC+9-24V, 130mA) when the power supply is insufficient;
●CAN-bus接口采用电气隔离，隔离模块绝缘电压：DC 3000V；
The CAN-bus interface employs electrical isolation, with an isolation module insulation voltage of DC 3000V;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
● Electrostatic discharge immunity level: contact discharge ±4KV, air discharge ±8KV;
●电快速瞬变脉冲群抗扰度等级：CAN总线接口±2KV；
● Electrical Fast Transient/Burst Immunity Level: CAN Bus Interface ±2KV;
●浪涌抗扰度等级：CAN总线接口±4KV；
● Surge immunity level: CAN bus interface ±4KV;
●最高接收数据流量：8000 fps；
● Maximum received data flow rate: 8000 fps;
●支持Win2000、WinXP、Win7、Win8、Win10等Windows操作系统；
● Supports Windows operating systems such as Win2000, WinXP, Win7, Win8, and Win10;
●支持GCANTools、CAN Test、CAN Pro测试软件；
● Supports GCANTools, CAN Test, and CAN Pro testing software;
●工作温度范围：-40℃~+85℃；
● Operating temperature range: -40℃~+85℃;

1.3典型应用
1.3 Typical Applications

●CAN-bus网络诊断与测试
● CAN-bus network diagnosis and testing
●汽车电子应用
● Automotive electronics applications
●电力通讯网络
● Power communication network
●工业控制设备
● Industrial control equipment
●高速、大数据量通讯
● High-speed, large-volume data communication

USBCAN-II C+设备使用手册链接
Link to the user manual for USBCAN-II C+ device

www.gcgd.net/filedownload/2977741

如果您需要具体了解设备或者询价，可以加我微信或在线对话框联络。
If you need specific information about the equipment or inquire about the price, you can add me on WeChat or contact me through the online chat.
